Normally, light passes from one material into another.

But under the right conditions, something extraordinary happens.

Instead of leaving the material, all of the light is reflected back inside.

No mirror is required.

The material itself becomes the mirror.

This remarkable phenomenon is called total internal reflection, and it forms the basis of optical fibers, endoscopes, and modern communication systems.

Looking for Hidden Reflections

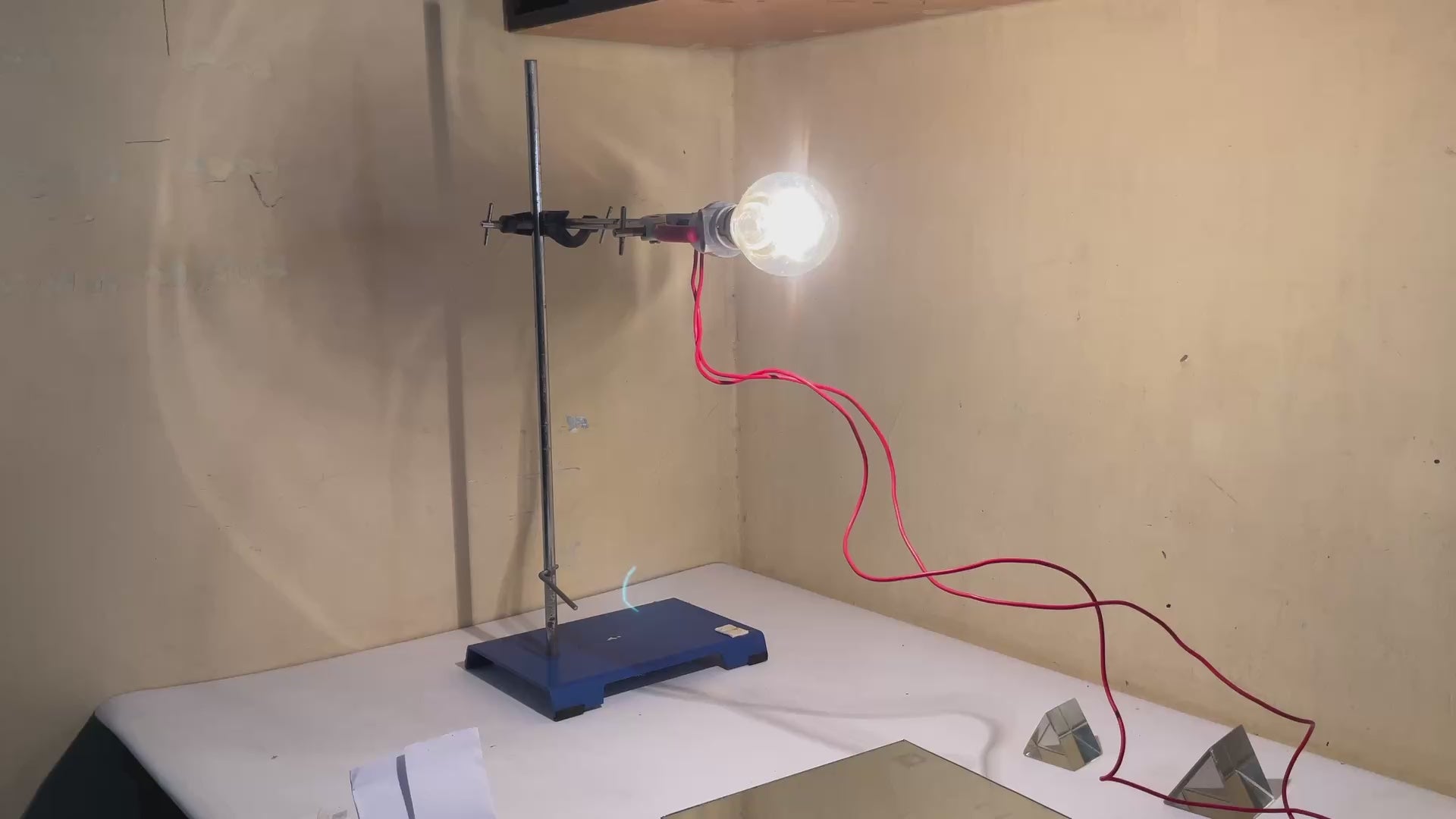

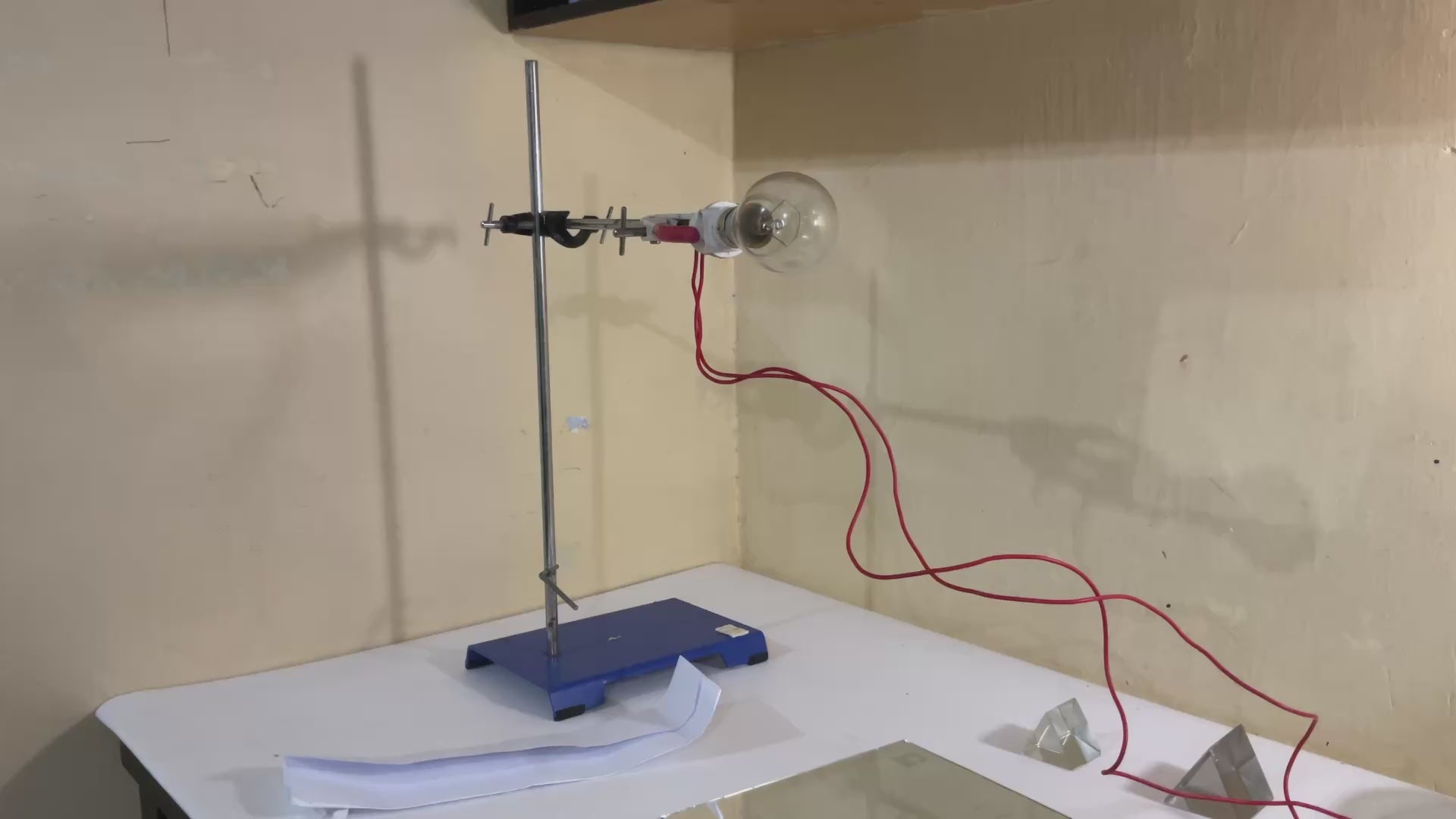

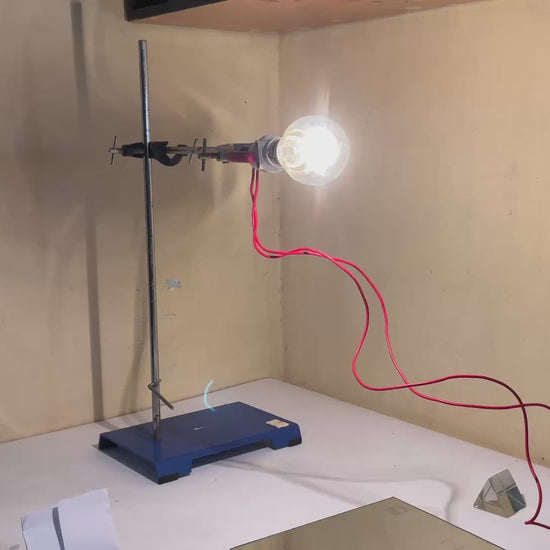

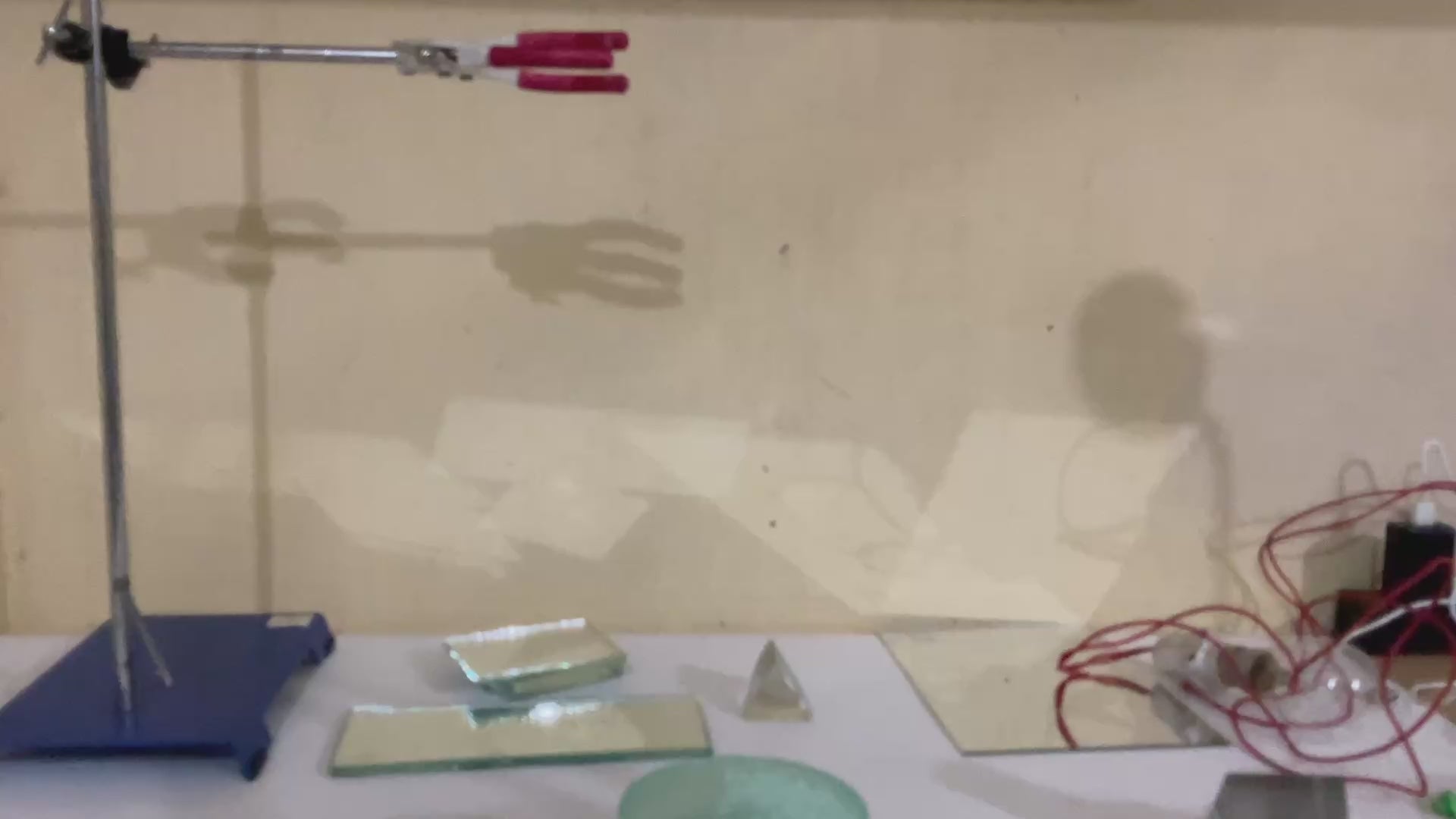

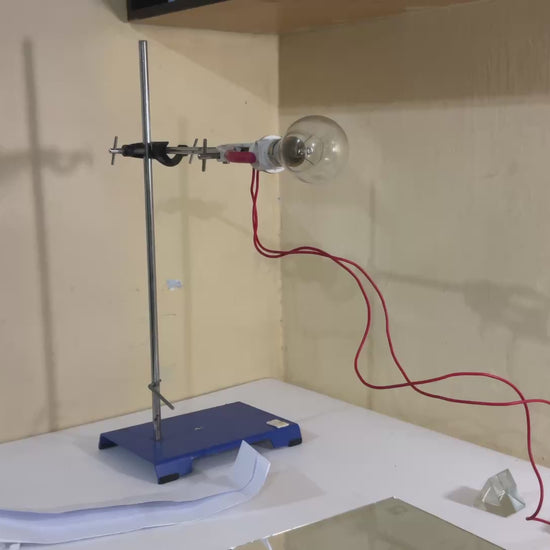

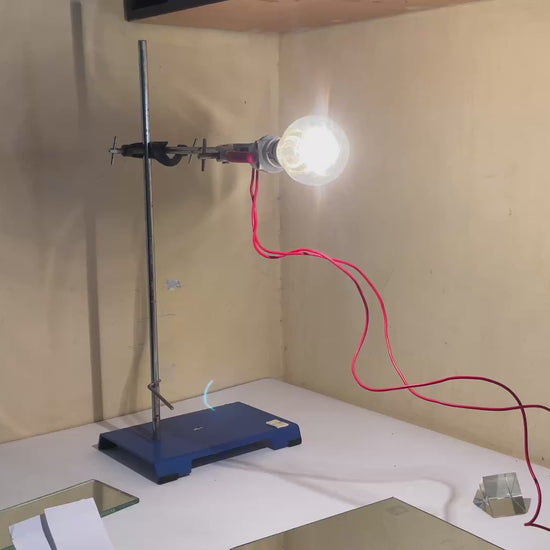

The investigation began with an ordinary glass slab.

Four faces were covered with white paper, leaving only two opposite faces exposed.

One faced a fixed light bulb.

The other faced the observer.

Viewed at a shallow angle, an image of the light bulb appeared on the lower surface inside the slab.

The image was not produced by an external mirror.

It was produced by light reflecting entirely from the internal glass–air boundary.

The Same Effect in a Mirror

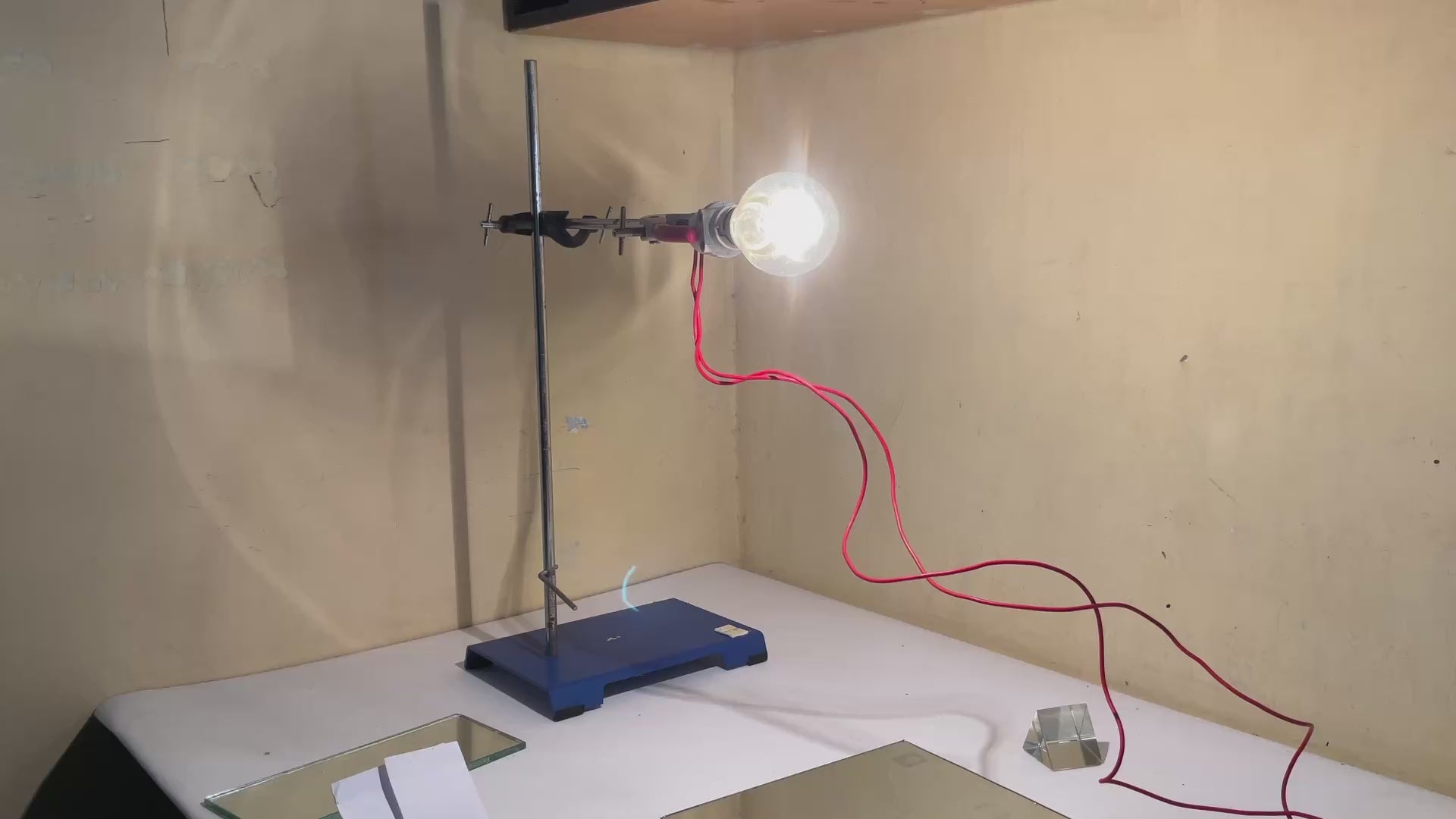

Next, a thick glass mirror was examined.

Again, the image of the light bulb could be seen inside the glass.

When the thin edge of the mirror was covered, this image disappeared.

The observation revealed that even an ordinary household mirror contains reflections produced by the glass itself, not just by the reflective coating.

A Prism Reveals the Phenomenon

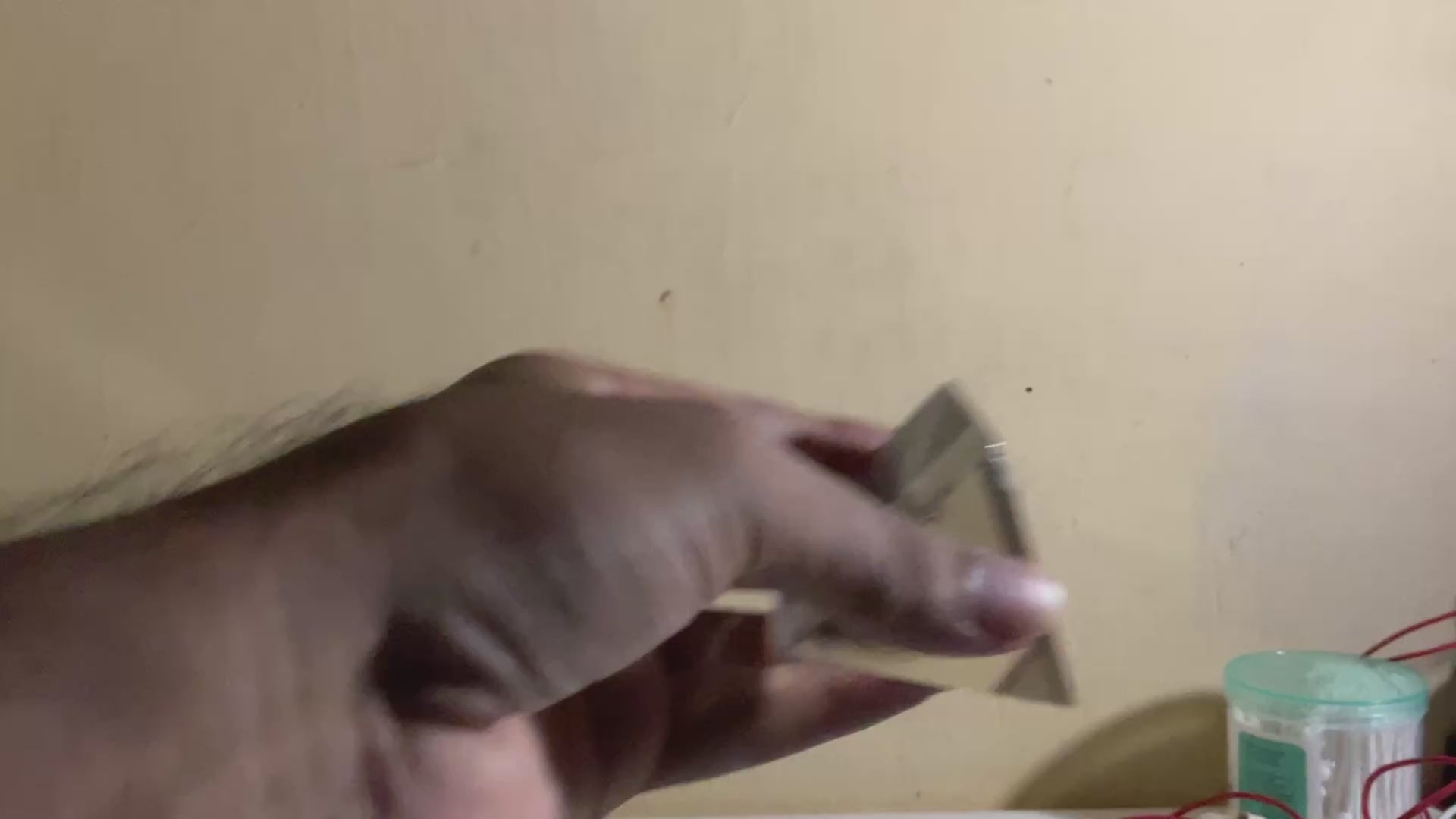

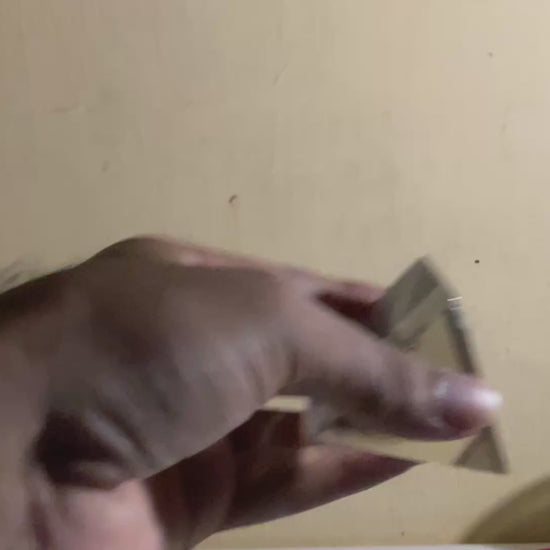

A glass prism provided an even clearer demonstration.

Looking through the prism, an image of the light bulb appeared on the lower face.

This again indicated that light reaching the glass–air interface at sufficiently large angles was reflected internally rather than escaping.

The prism naturally provides the geometry needed for total internal reflection.

Watching the Transition

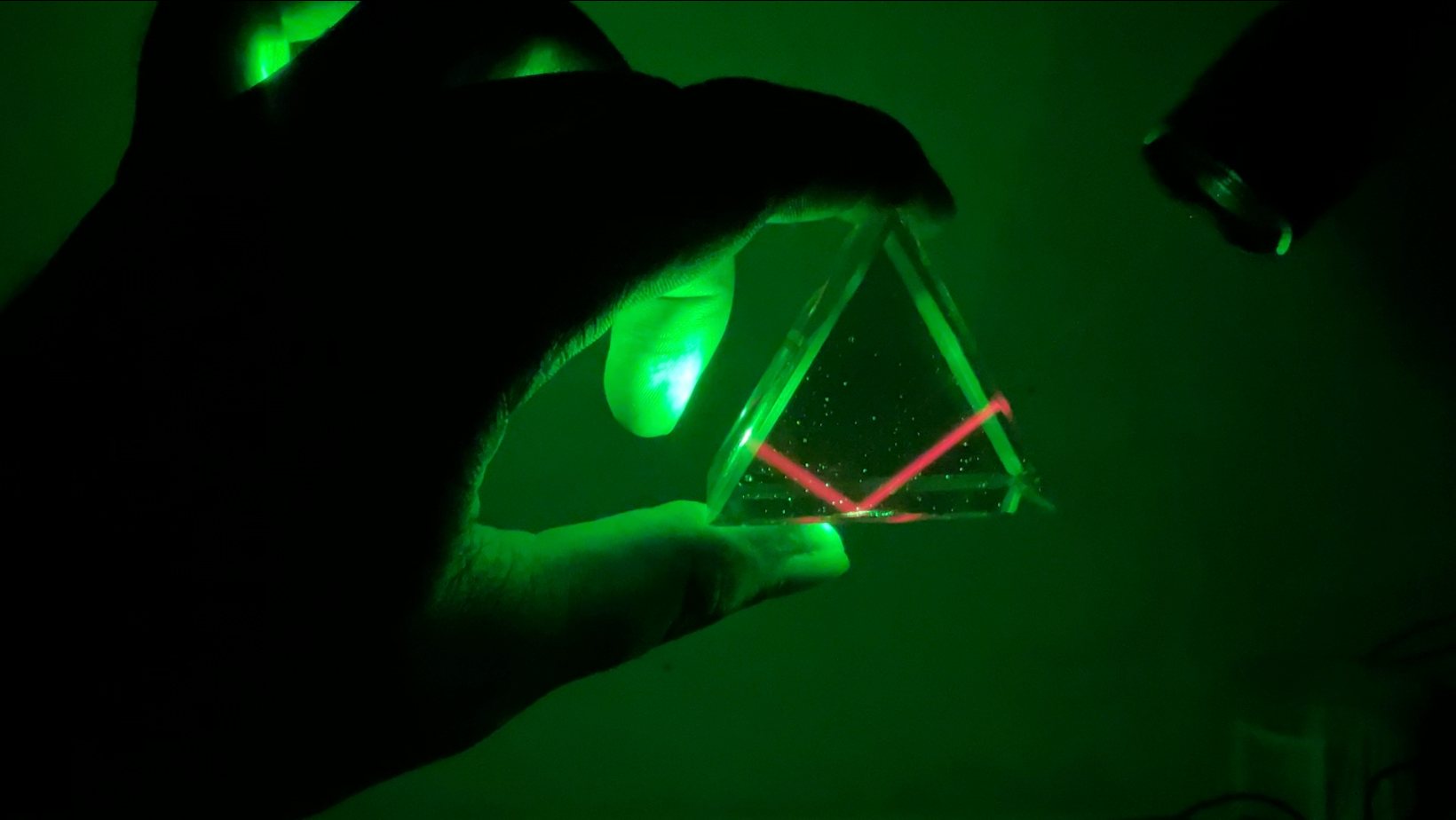

The next experiment used a laser.

The beam entered a prism and its path inside the glass became visible.

Attention was focused on the second interface, where light attempted to leave the prism and enter air.

As the prism was rotated, two beams could be observed:

• A transmitted beam leaving the prism.
• A reflected beam remaining inside.

The reflected beam became brighter as the angle increased.

Eventually, the transmitted beam disappeared completely.

Beyond this critical angle, every ray remained inside the prism.

Total internal reflection had occurred.

Can Water Do the Same?

Water was placed inside a transparent plastic container.

A laser beam was directed horizontally through the water.

The scattered light illuminated the water, making the beam visible.

As the angle changed, the reflected intensity increased.

But an interesting question arose.

Was the reflection occurring at a water–air interface?

Not immediately.

The light first encountered the water–plastic boundary.

Only afterward did it reach the plastic–air boundary.

This makes the experiment more subtle than it first appears.

Can the observed reflection really be called total internal reflection?

This is an excellent question for visitors to investigate.

A Better Water Experiment

To isolate the phenomenon, a bottle was half-filled with water and turned upside down.

Now a well-defined water–air interface existed.

The laser beam could strike this interface directly.

The transition toward total internal reflection became visible, although less sharply than in the glass prism.

The lower refractive index contrast between water and air produces a smaller critical angle than glass–air systems.

Guiding Light Around Corners

One of the most remarkable consequences of total internal reflection is that light can follow curved paths.

Instead of travelling only in straight lines through free space, light can remain trapped inside a transparent medium as long as the angle at the boundary remains greater than the critical angle.

This principle makes flexible light guides possible.

Endoscopes

Doctors use bundles of thin optical fibers to look inside the human body.

Light travels into the body through one set of fibers.

The reflected image returns through another set.

Because the fibers are flexible, they can navigate curved pathways that rigid optical systems cannot.

The ability of light to remain trapped inside the fibers is entirely due to repeated total internal reflections.

Optical Fiber Communication

The same principle carries information around the world.

Optical fibers guide pulses of light over enormous distances with very little loss.

Instead of electrical signals travelling through copper wires, information is carried by light trapped inside glass fibers.

Modern internet communication depends heavily on this phenomenon.

An Unexpected Observation

A glue stick was also tested as a light guide.

The laser beam entered the glue and underwent internal reflections.

However, the light did not travel very far.

Why?

The glue strongly absorbed and scattered the light.

Although total internal reflection occurred, the material itself introduced significant attenuation.

A good optical waveguide requires not only total internal reflection but also a material that absorbs and scatters very little light.

A Question Worth Exploring

If an optical fiber is bent too sharply, does it still guide light perfectly?

Probably not.

As the curvature increases, some rays no longer satisfy the condition for total internal reflection.

They escape from the fiber.

This suggests an interesting engineering trade-off between flexibility and transmission efficiency.

Can you investigate how tightly a light guide can be bent before light begins to leak out?

A Deeper Realization

Normally we imagine light travelling in straight lines.

Total internal reflection reveals something much richer.

Light still travels in straight lines between reflections, but by repeatedly reflecting from the boundaries of a transparent material, it can be guided along almost any path.

This simple idea has transformed medicine, communication, and imaging technologies.
