A mirror seems simple.

It reflects whatever is placed before it.

But with one mirror—and especially with two mirrors—surprising questions begin to appear.

Why does tracing paper erase a mirror?

Why do some words appear unchanged?

Why does a second reflection undo the left–right reversal?

And why does all of this connect to one of the deepest ideas in modern physics: symmetry?



Experiment 1 — The Mystery of Tracing Paper

A word was written on paper using a sketch pen.

A sheet of tracing paper was placed over it.

When the tracing paper almost touched the letters, the writing remained visible.

As the tracing paper was lifted only slightly, the word disappeared.

Why?

The tracing paper is not transparent.

It is translucent.

Instead of allowing light to travel in straight paths, it scatters the light in many directions.

When the paper is close to the writing, the scattered light has not spread very far, so the letters remain distinguishable.

As the distance increases, the scattered light from neighboring points overlaps.

The contrast between the letters and the background is lost, and the image disappears.

A Second Surprise

The tracing paper was then placed directly on top of a mirror.

One might expect the mirror to remain visible because the tracing paper transmits much of the light.

Instead, the mirror almost completely lost its ability to form an image.

It appeared nearly opaque.

Why?

Although much of the light passes through the tracing paper, it is scattered before reaching the mirror.

After reflection, it is scattered once again while returning through the paper.

The mirror still reflects light, but the directional information needed to form an image has been destroyed.

The reflection survives.

The image does not.

Experiment 2 — Is a Mirror Really Reversing Left and Right?

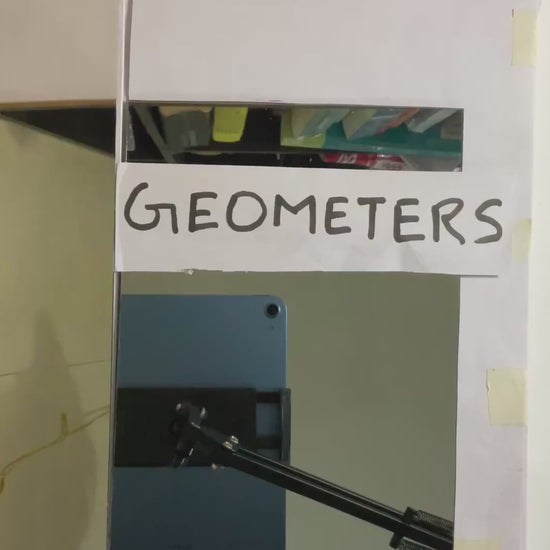

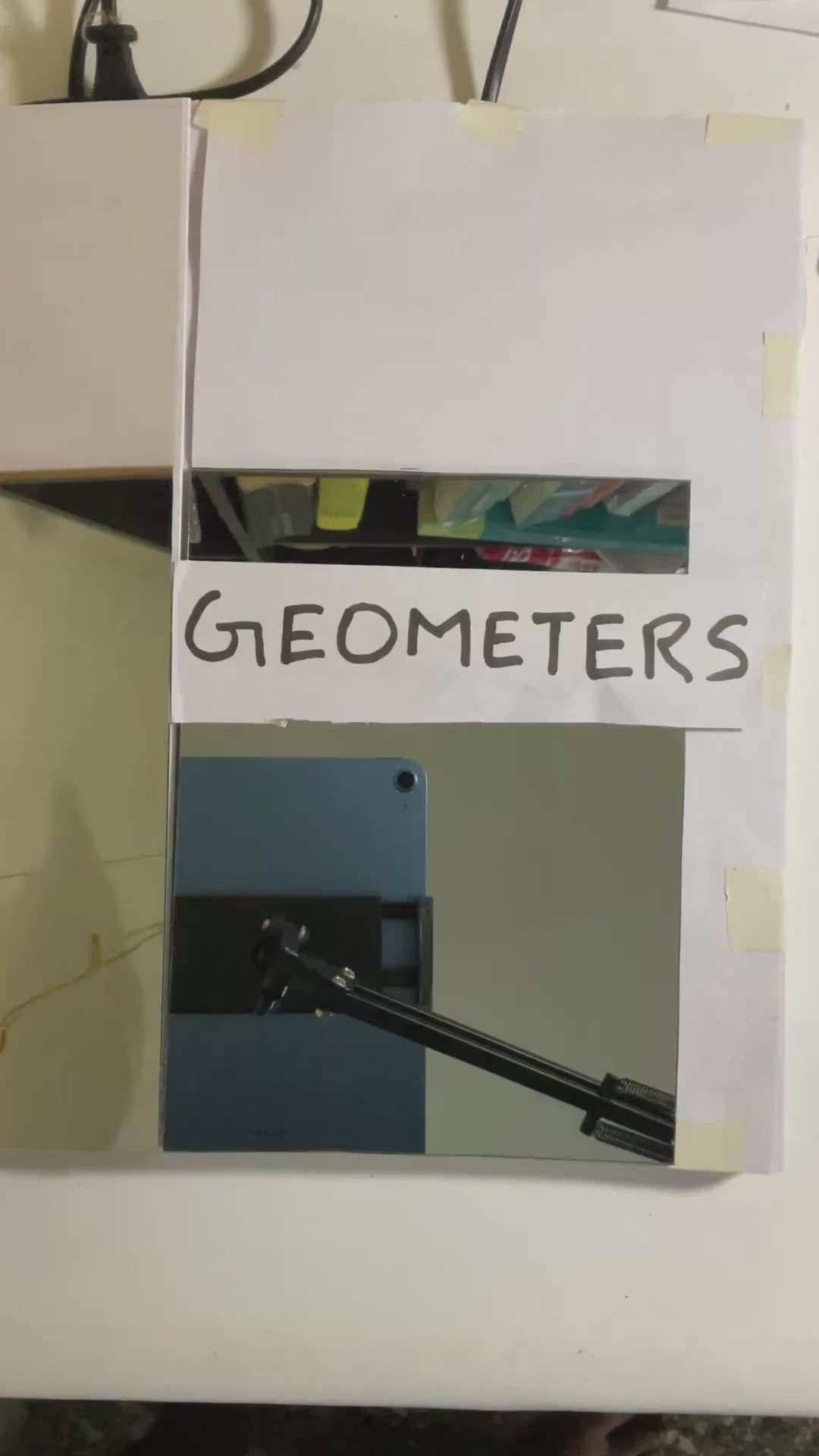

A word written on paper was placed before a plane mirror.

The reflected image appeared laterally inverted.

But something subtle was happening.

To compare the word with its reflection, the paper itself had to be turned around.

That requires a rotation of approximately 180° about a vertical axis.

The mirror is not actively swapping left and right.

Rather, the object has been reoriented relative to the observer.

This is why the person standing "inside" the mirror would read the word normally.

The apparent reversal arises from comparing two observers facing one another.

A Fun Investigation

Some letters possess mirror symmetry.

Examples include:

A, H, I, M, O, T, U, V, W, X and Y.

Words made entirely from these letters often appear much less unusual in a mirror.

An even greater surprise occurs with carefully chosen palindromes.

Can you discover one that looks almost unchanged?

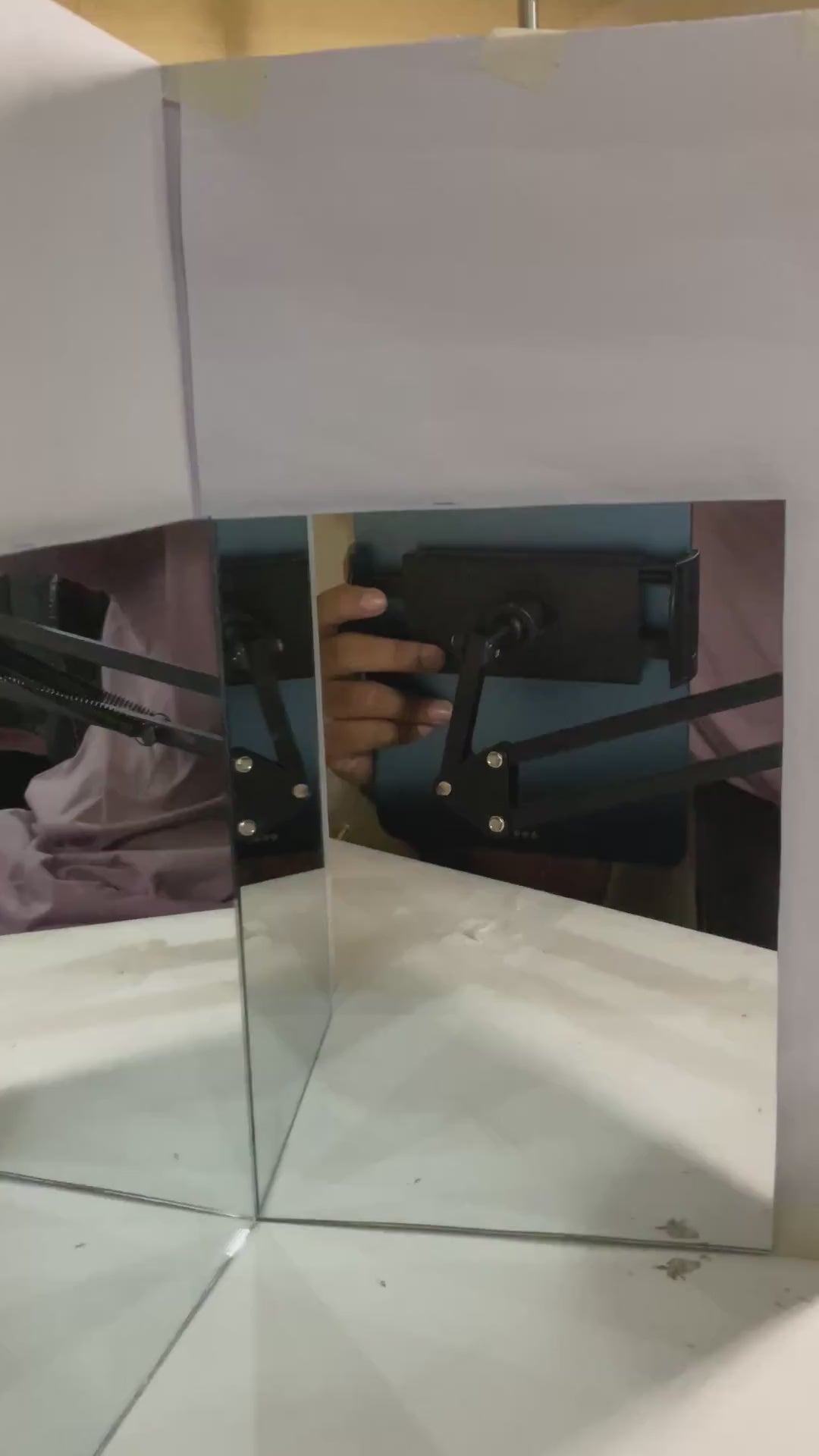

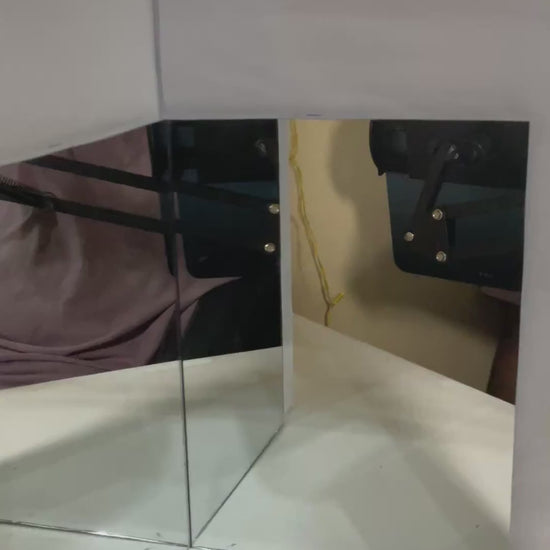

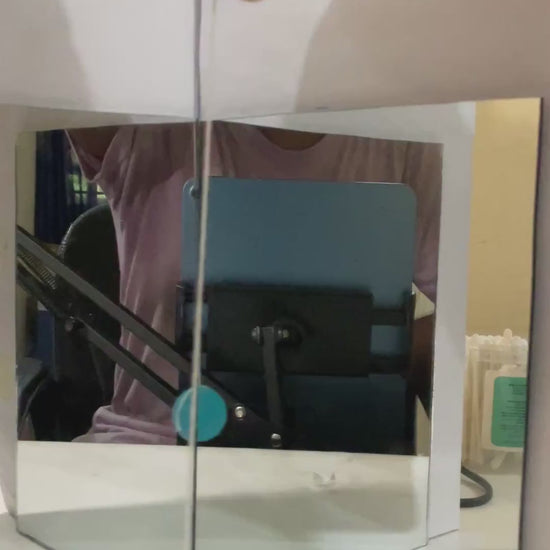

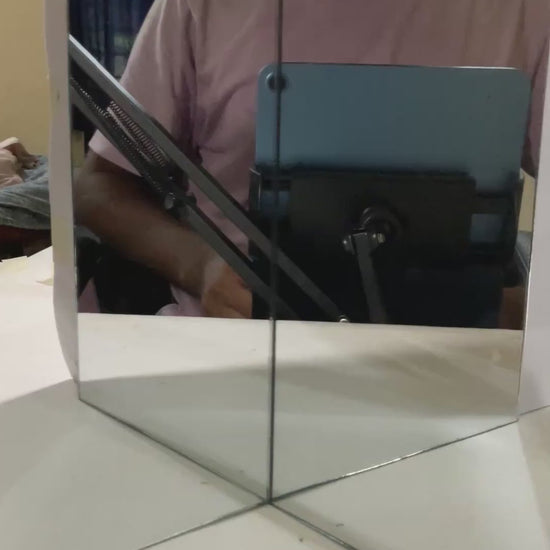

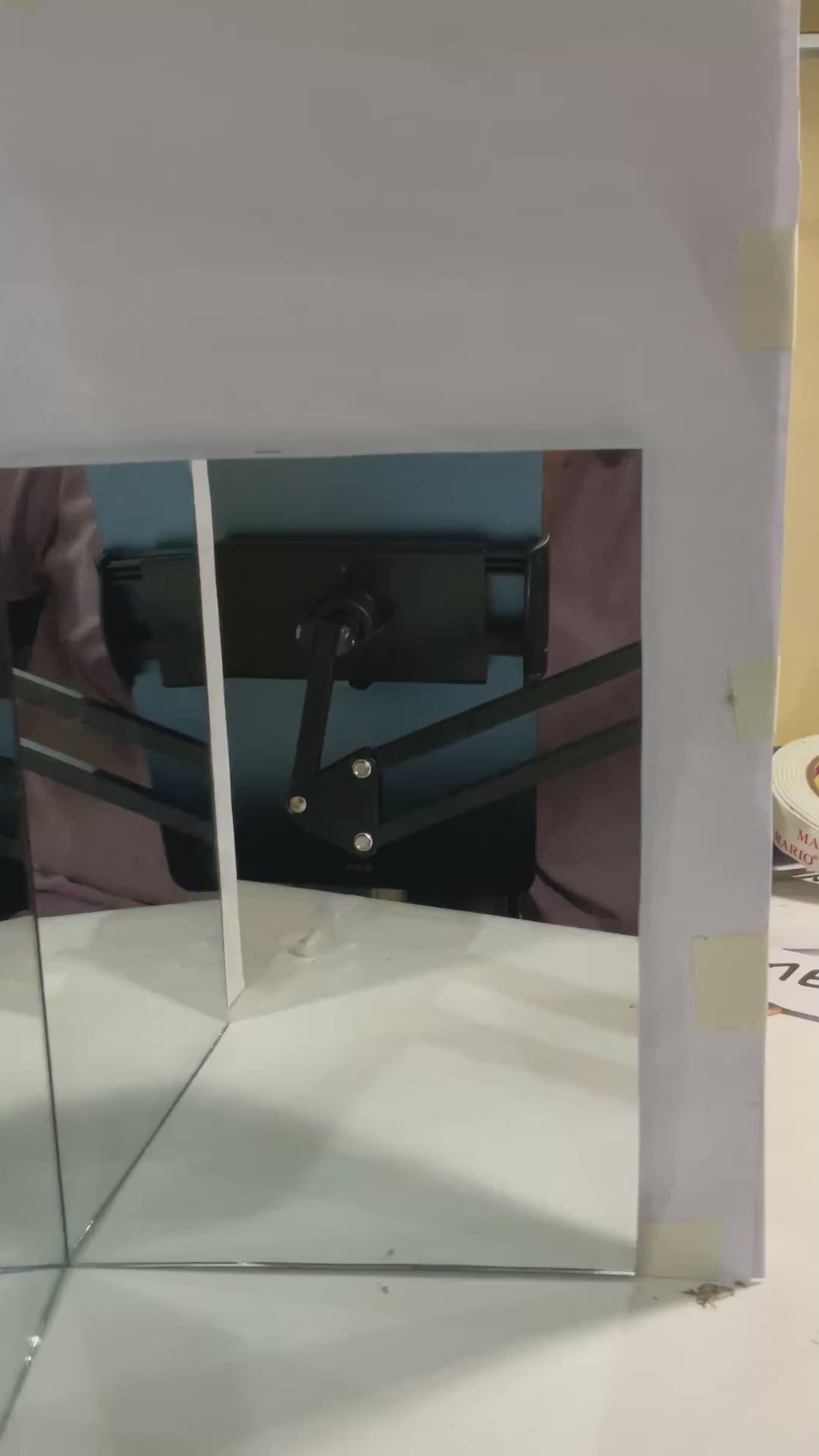

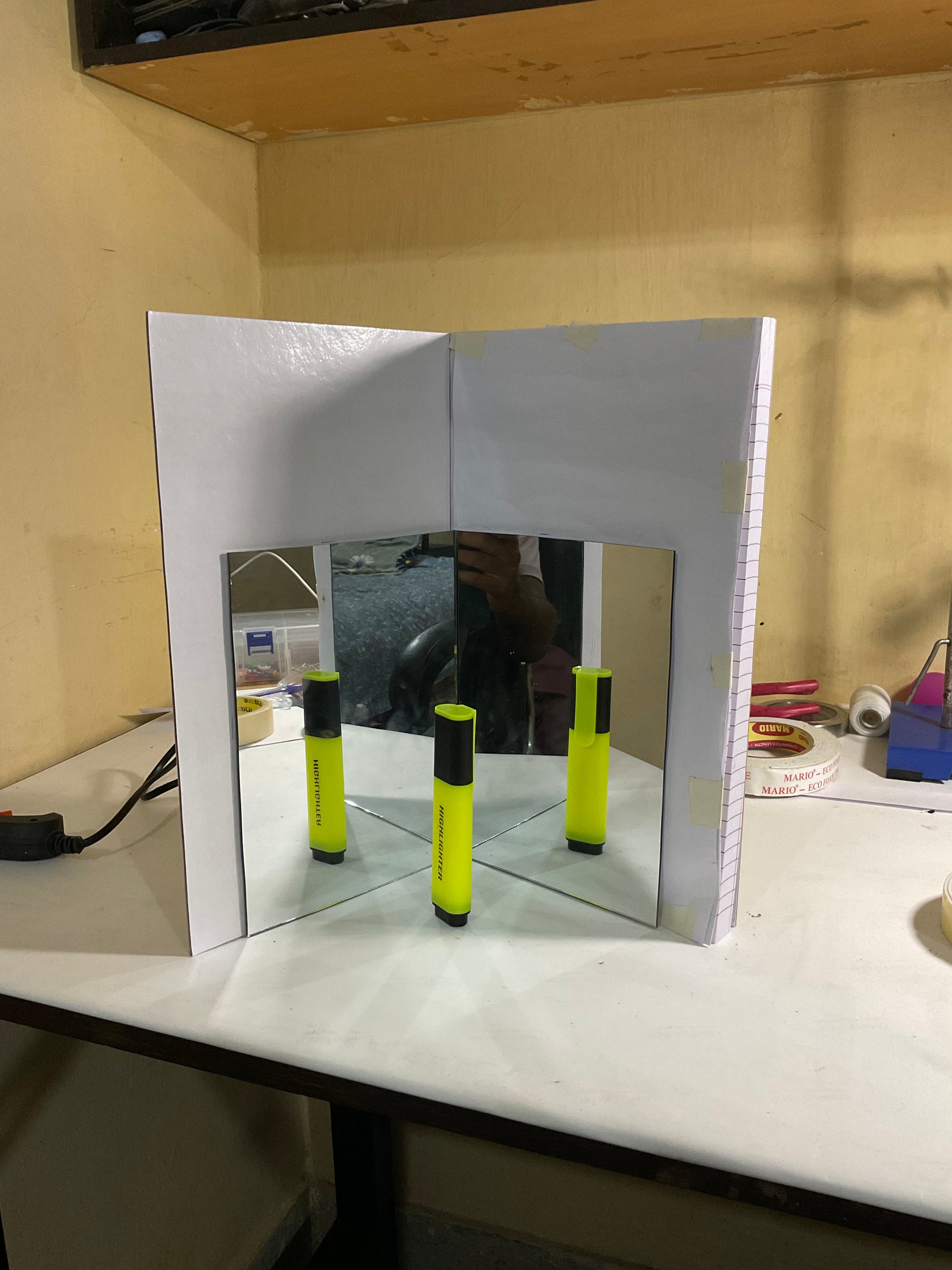

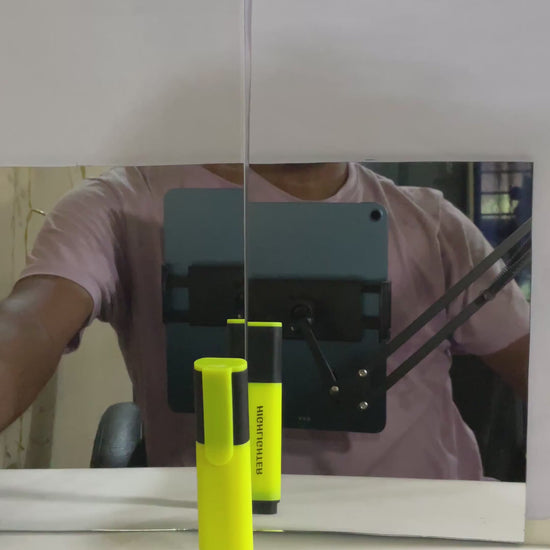

Experiment 3 — Two Mirrors at Right Angles

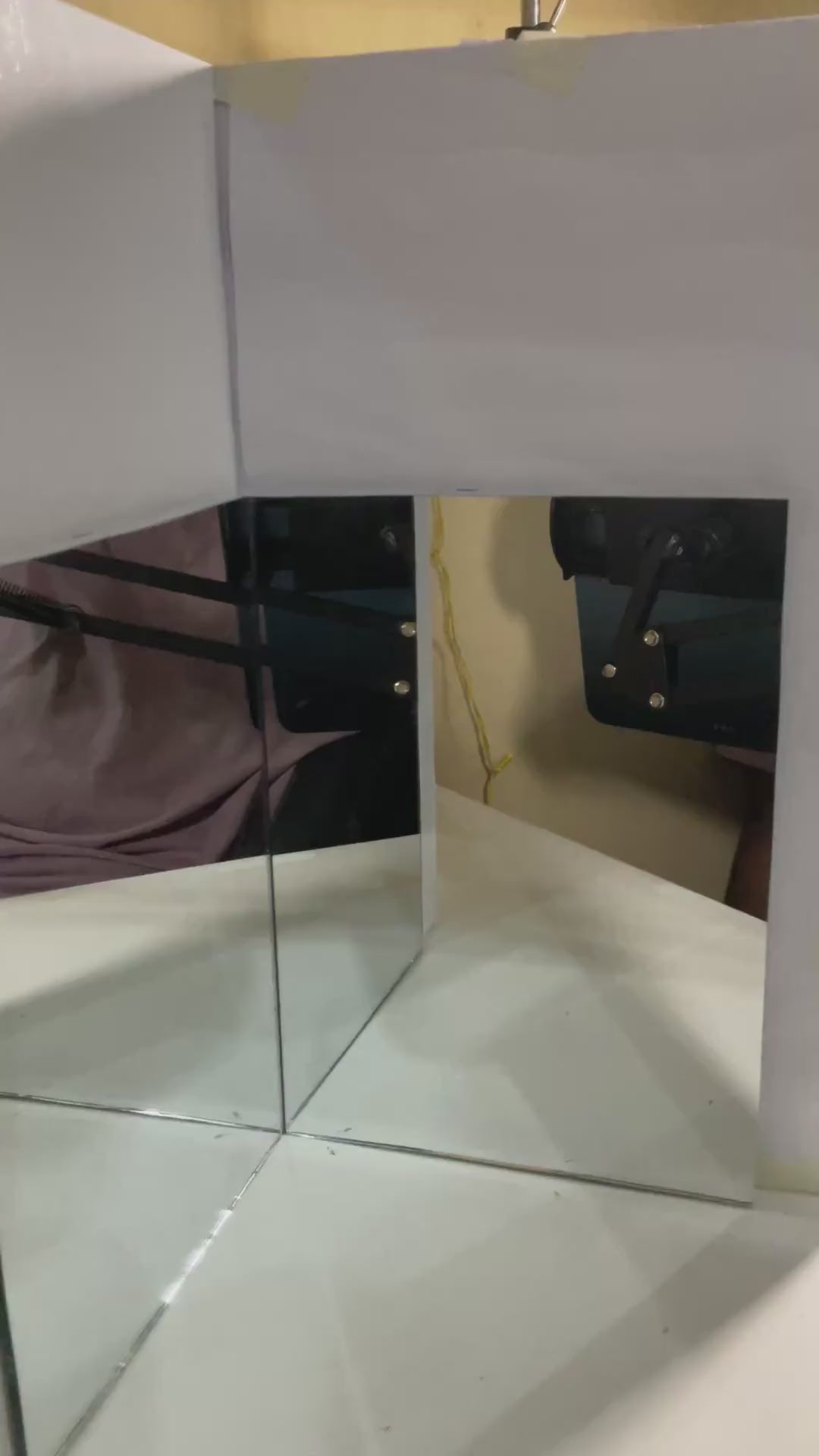

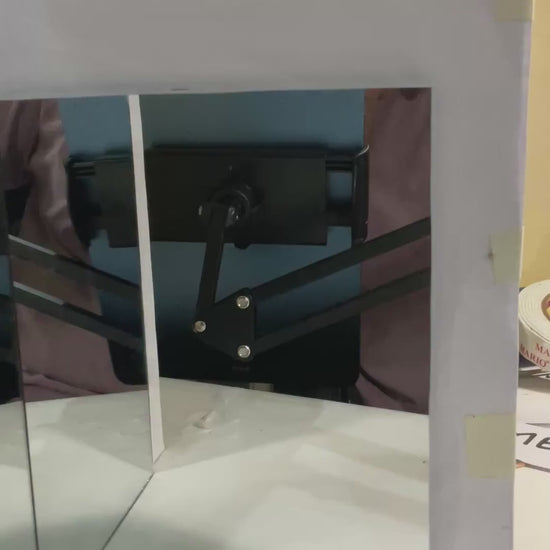

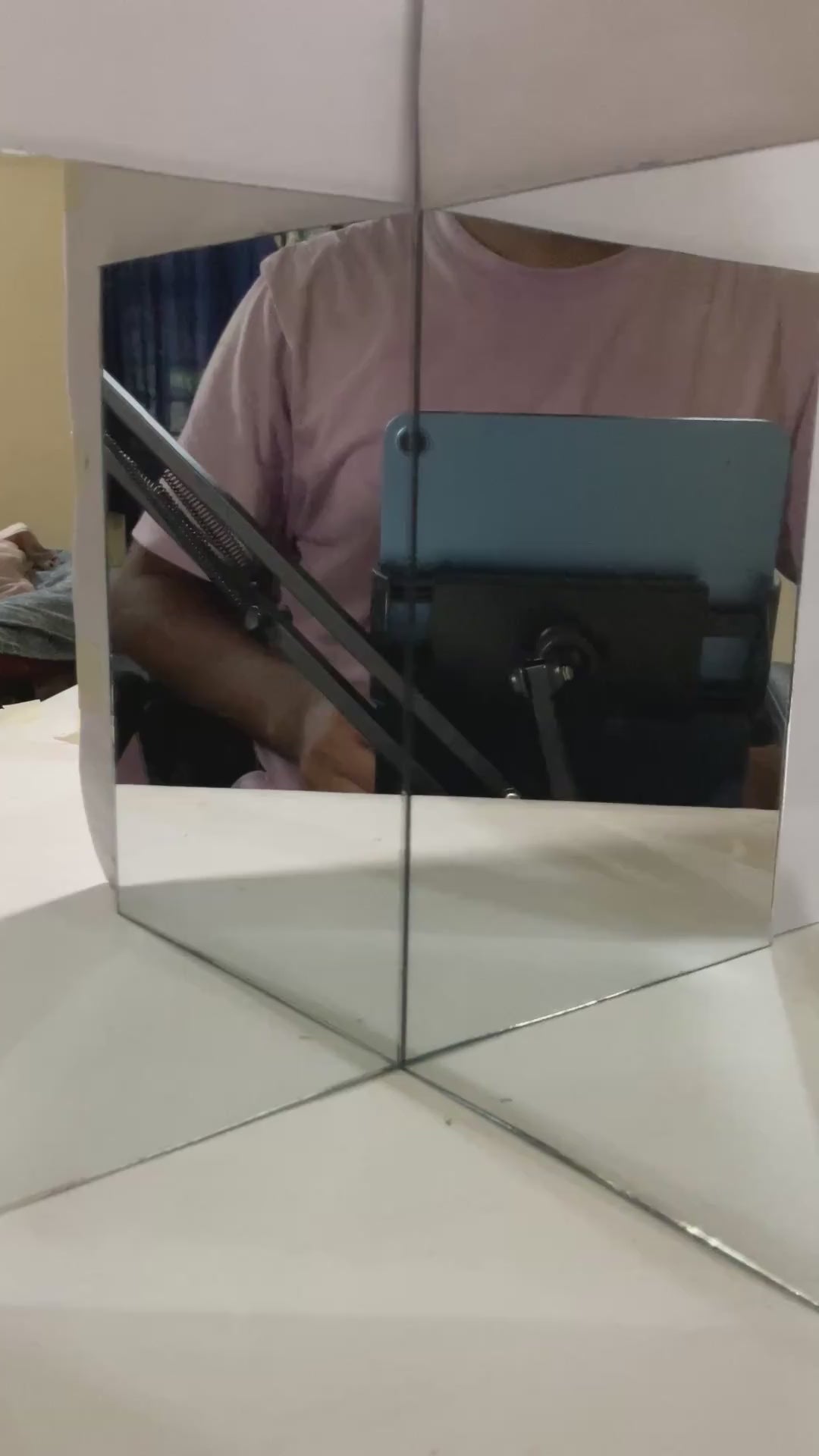

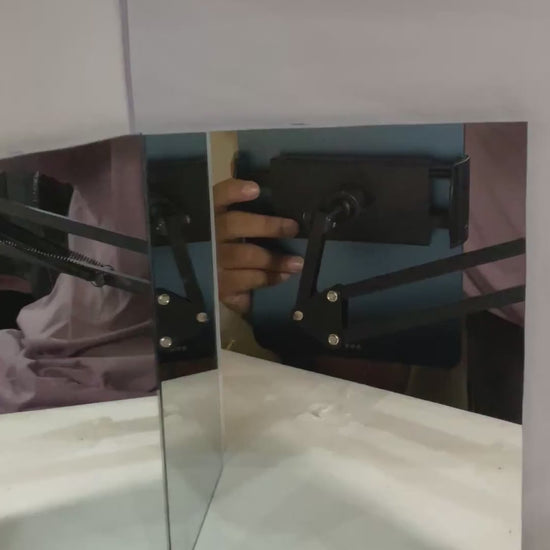

The two mirrors were opened to 90°.

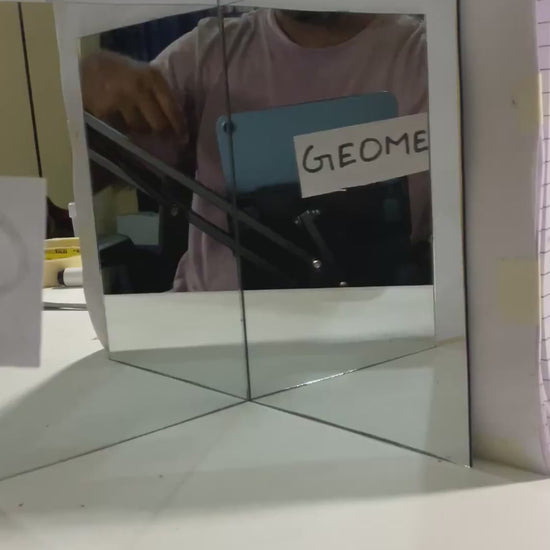

Attention was focused on the image formed by two successive reflections.

Something remarkable happened.

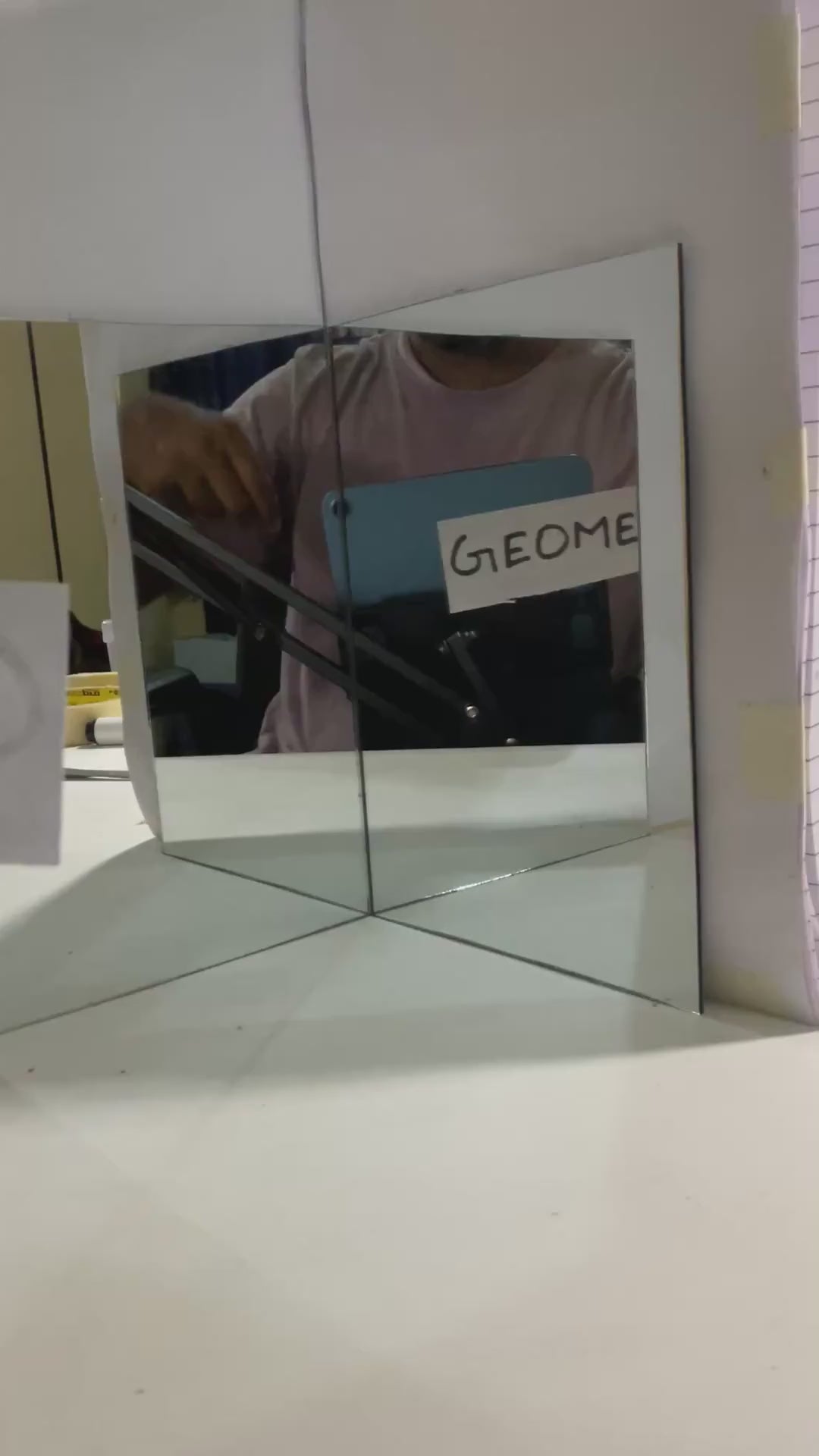

The writing was no longer laterally inverted.

The double reflection restored the original orientation.

Two reflections behave very differently from one.

This is because two successive reflections are mathematically equivalent to a rotation.

The image preserves handedness.

Investigating Orientation

A cotton ear bud was coloured:

• Red on one end.
• Black on the other.

In a single mirror, the apparent left–right arrangement changed.

But in the image produced by the two mirrors together, the original orientation returned.

The same phenomenon appeared with motion.

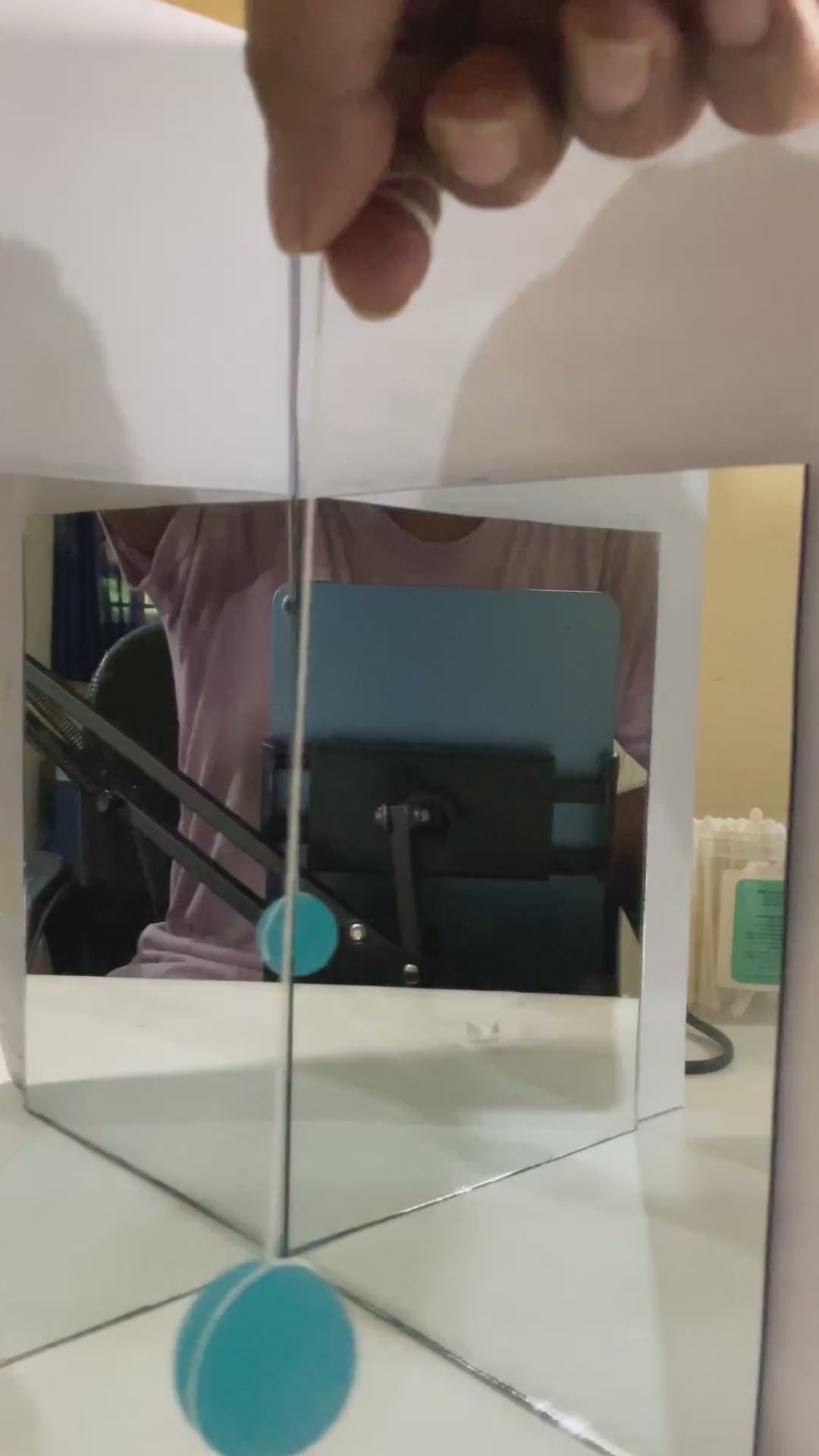

A ball tied to a thread was rotated in a horizontal circle.

The real ball rotated clockwise.

Its image in one mirror rotated anticlockwise.

The image formed after two reflections rotated in the original sense.

The second reflection restored the handedness of the motion.

Why Two Reflections Are Different

One reflection changes handedness.

Two reflections restore it.

This simple observation connects directly to one of the most fundamental ideas in geometry:

Symmetry transformations.

Reflections and rotations are different mathematical operations.

Combining two reflections produces a rotation.

That is exactly what the experiment demonstrates.

A Connection to Modern Physics

Symmetry is one of the central ideas in physics.

Many physical laws remain unchanged under symmetry transformations.

One particularly important symmetry is parity, which asks whether nature behaves the same in a mirror-reflected world.

For many years physicists believed parity was always conserved.

Later experiments showed that certain weak nuclear interactions violate parity symmetry.

Although this mirror experiment does not demonstrate parity violation, it introduces the geometric ideas needed to appreciate why mirror symmetry became such a profound question in twentieth-century physics.

A Deeper Realization

The most remarkable lesson from these experiments is that light alone is not enough to form an image.

An image is created only when the directional information carried by light is preserved.

Tracing paper transmits light but destroys that information.

A mirror preserves it.

Two mirrors transform it in unexpected ways.

By studying these simple setups, we begin to understand that seeing is not merely about brightness—it is about the geometry of light.
