Can a tiny hole replace a camera lens?

Surprisingly, yes.

With nothing more than a dark box, a pinhole, and a translucent screen, you can project a real image of the world.

This simple device reveals one of the most fundamental ideas in optics:

Images are formed by the geometry of light itself.

Building the Camera

The camera consists of only three essential parts:

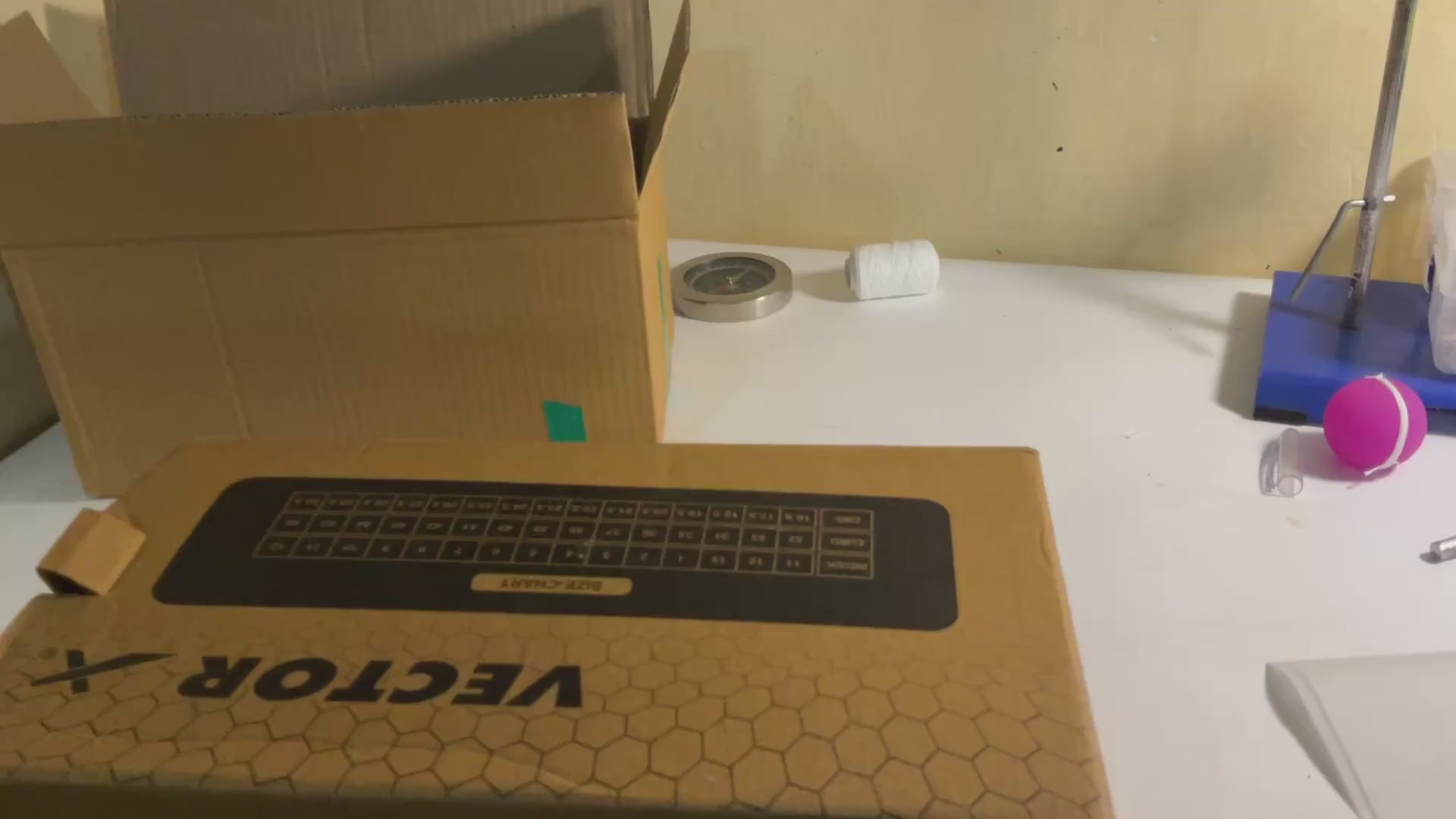

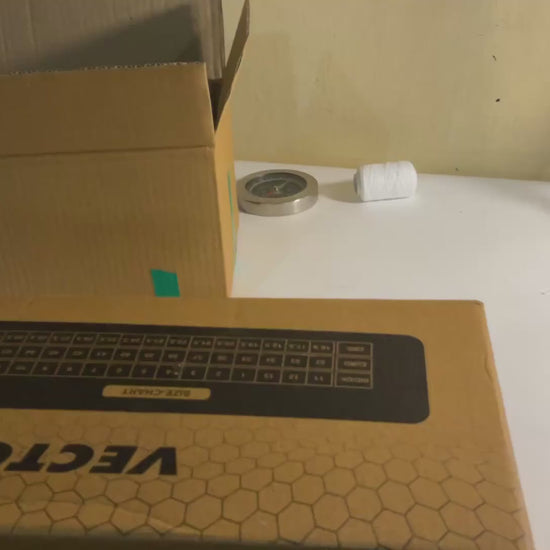

• A completely dark box
• A tiny pinhole
• A translucent screen

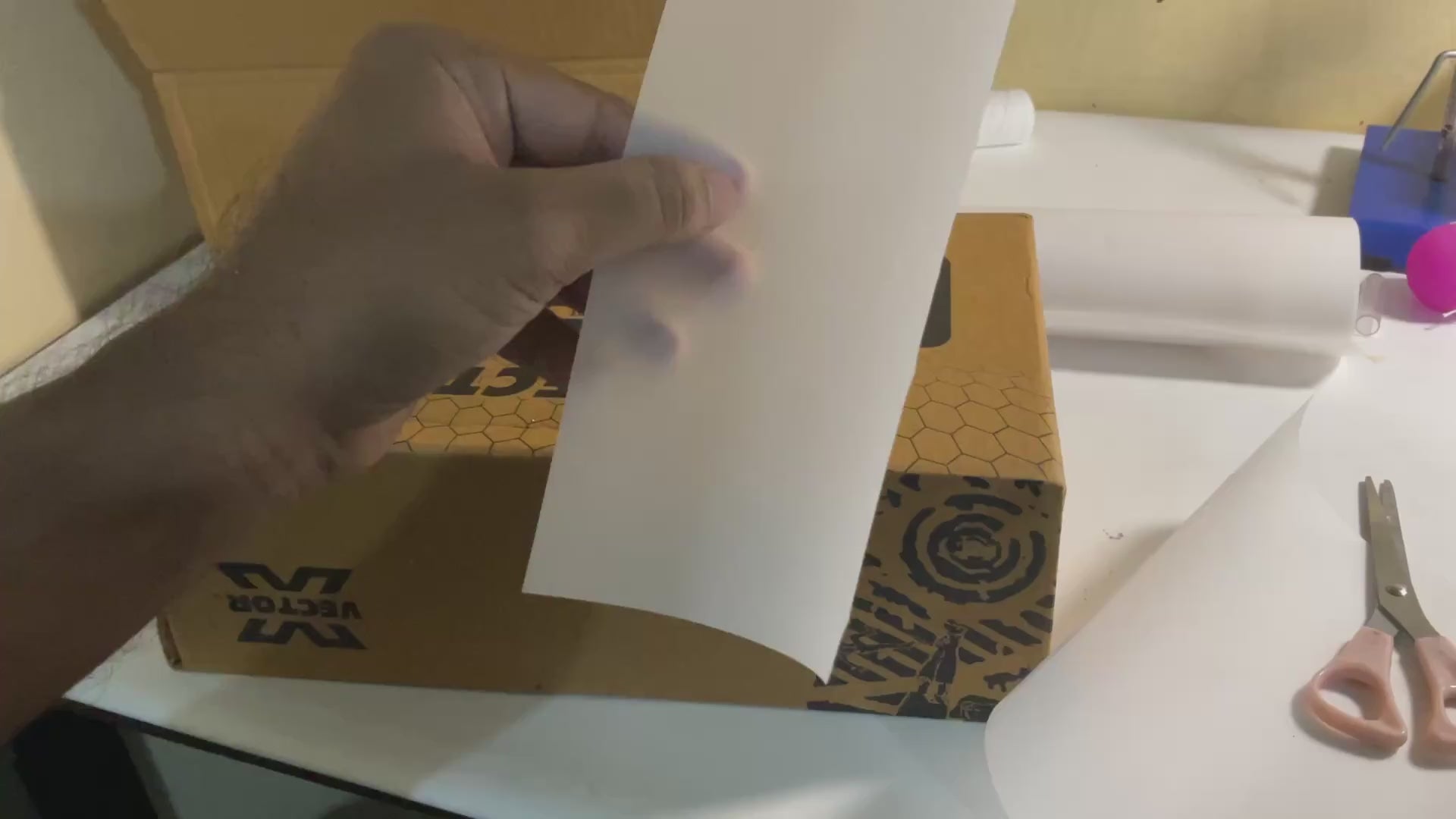

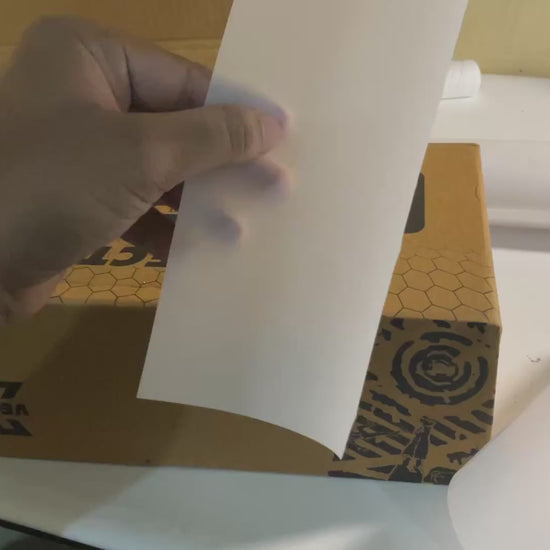

A tracing paper was chosen as the screen because it is partially transparent.

Light from the image forms on the tracing paper, while enough light passes through it to allow the observer to view the image from the opposite side.

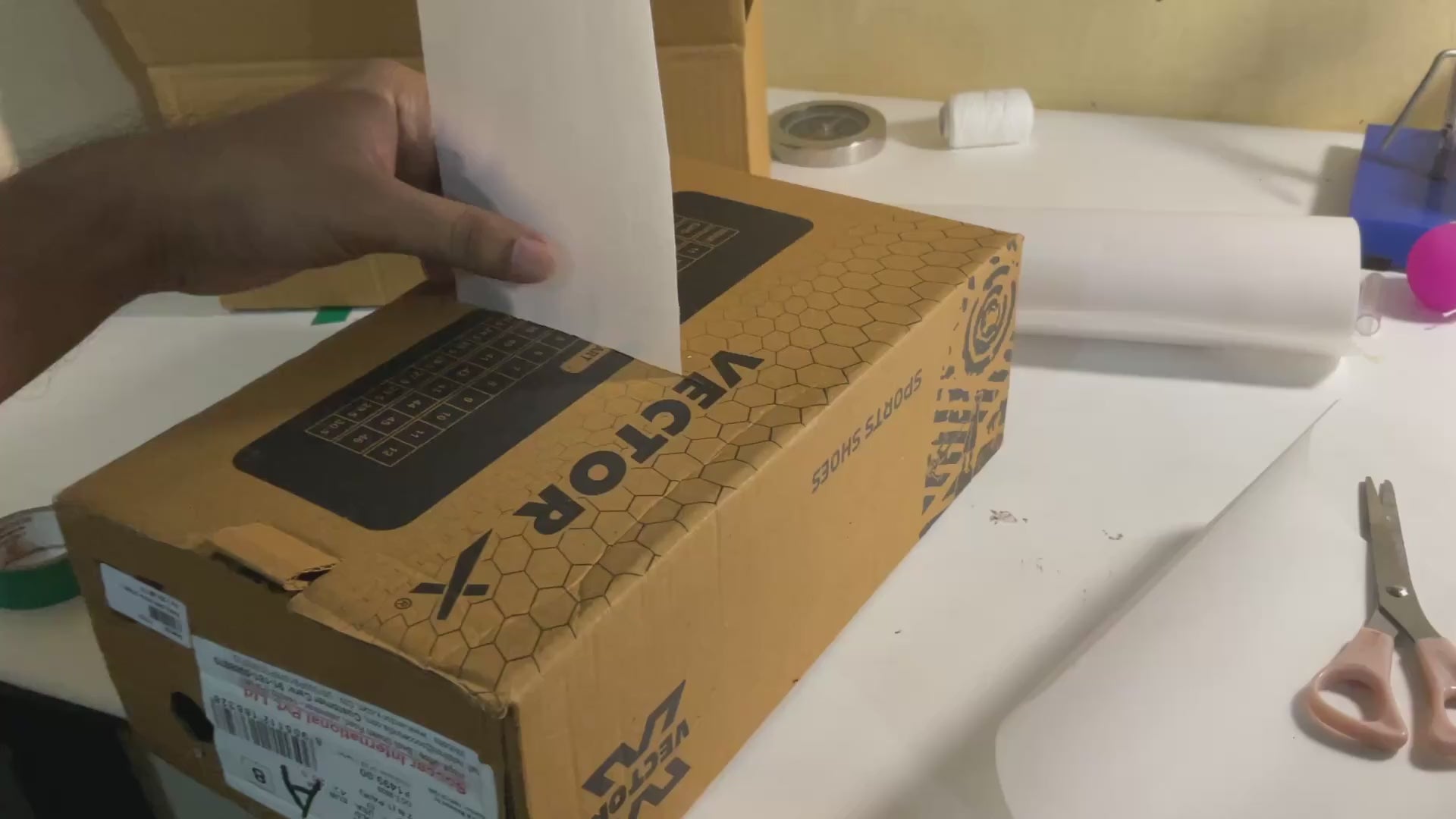

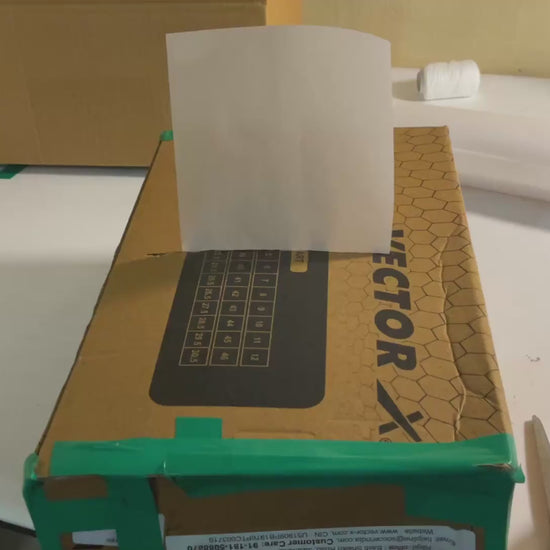

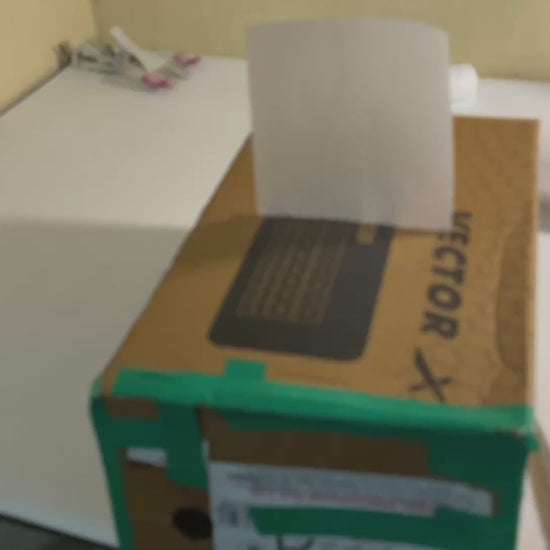

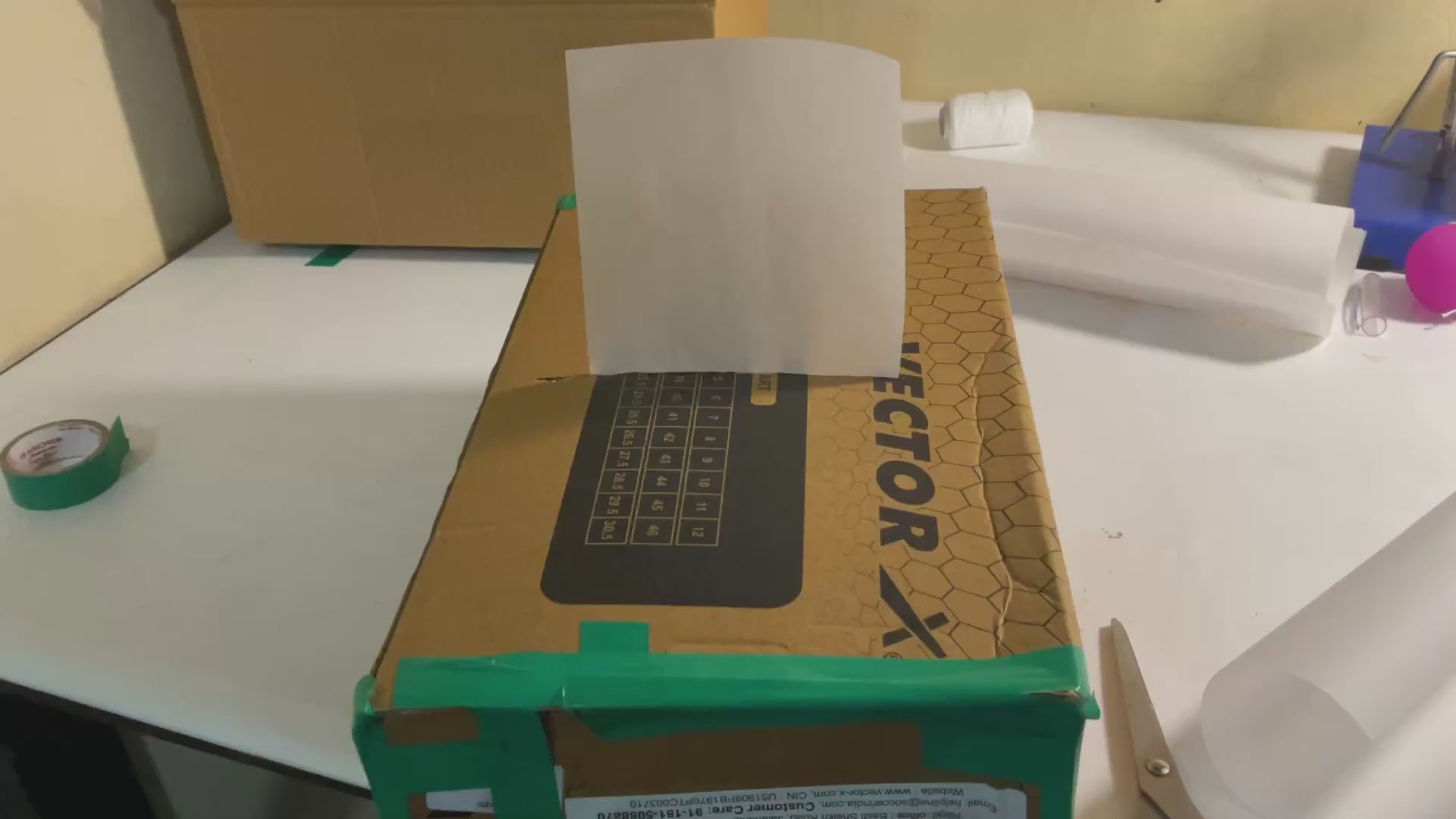

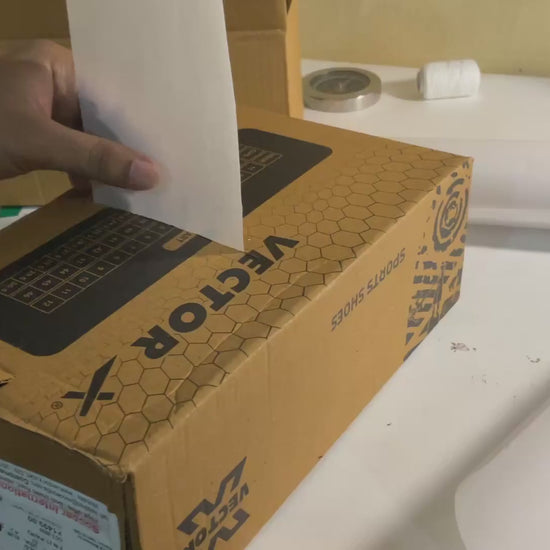

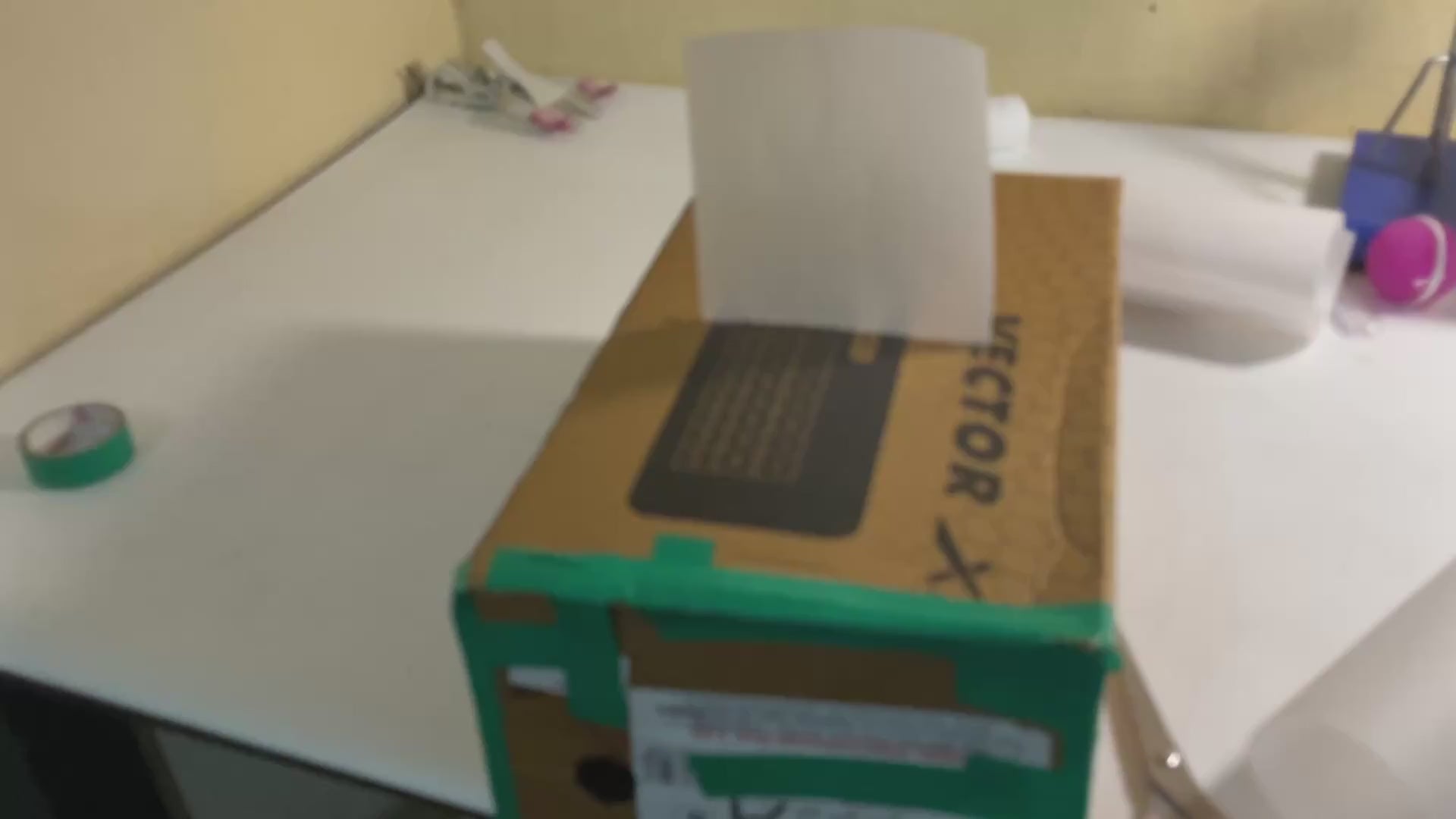

The tracing paper was inserted through a slit cut into the middle of the shoe box.

This arrangement ensured that:

• The screen remained inside a dark chamber.
• Outside light was minimized.
• The projected image could still be observed comfortably.

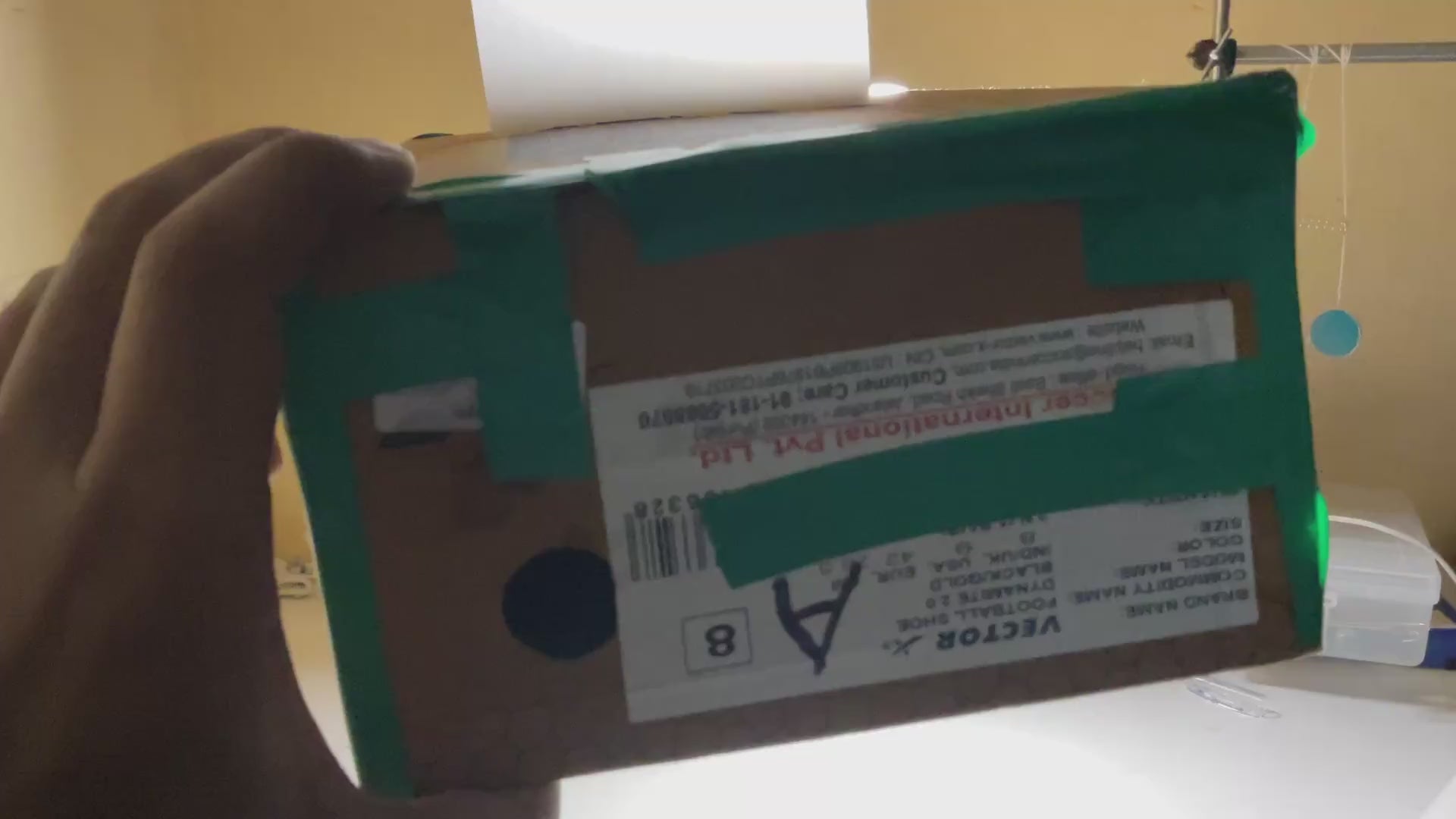

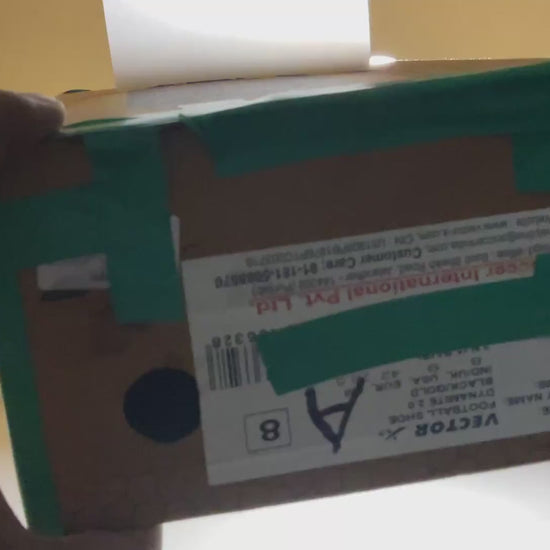

Finally, a tiny pinhole was made on one side of the box.

A small hole has to be cut opposite to the pinhole to see inside.

The camera was complete.

First Observation

A table lamp was placed in front of the camera.

A clear image appeared on the tracing paper.

One observation was immediate.

The image was much dimmer than the lamp itself.

Why?

The pinhole admits only a tiny fraction of the light entering your eye.

Your eye has a much larger pupil than the pinhole.

A smaller aperture produces a dimmer image.

Looking at Different Light Sources

Different objects were then observed.

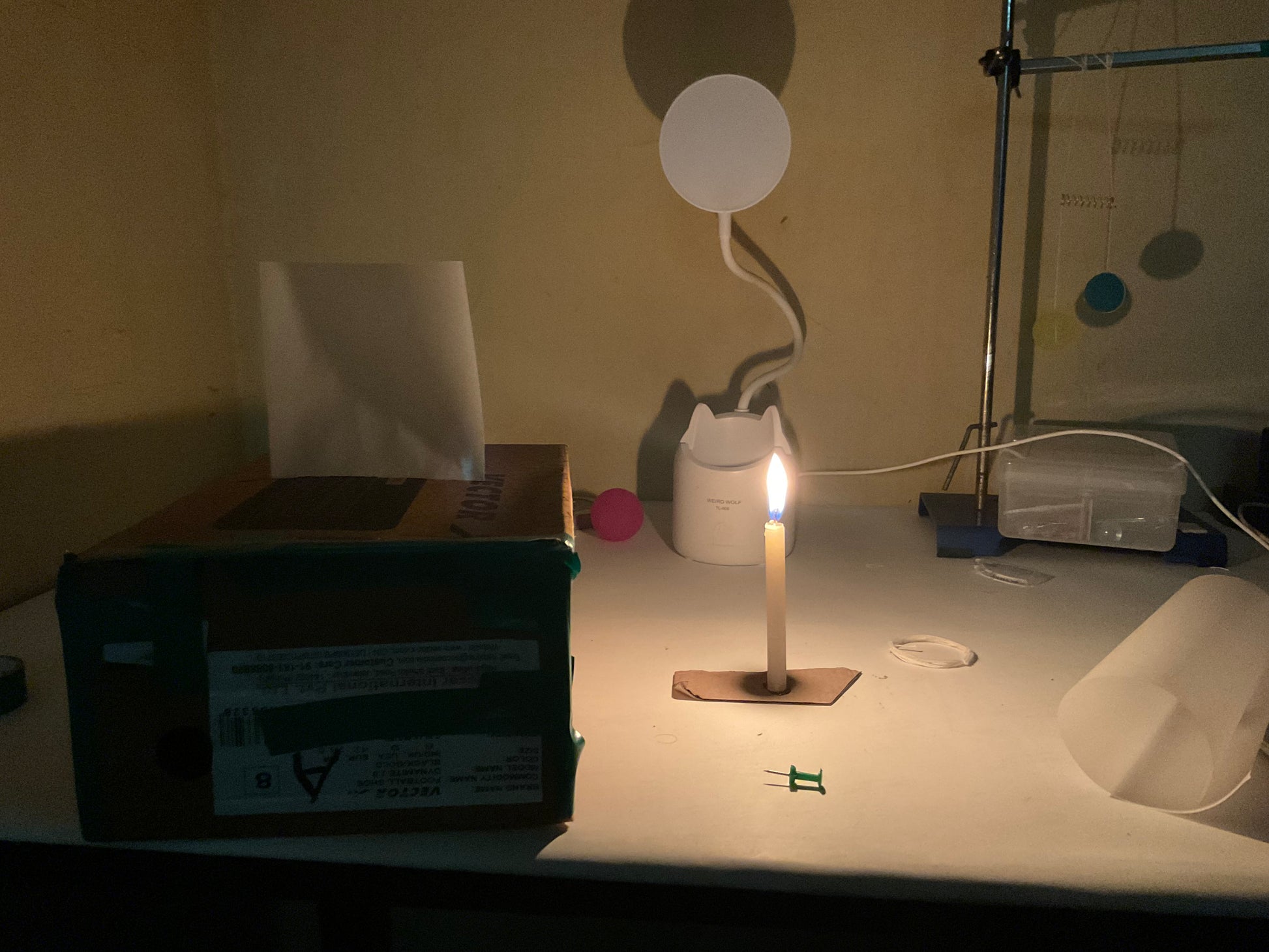

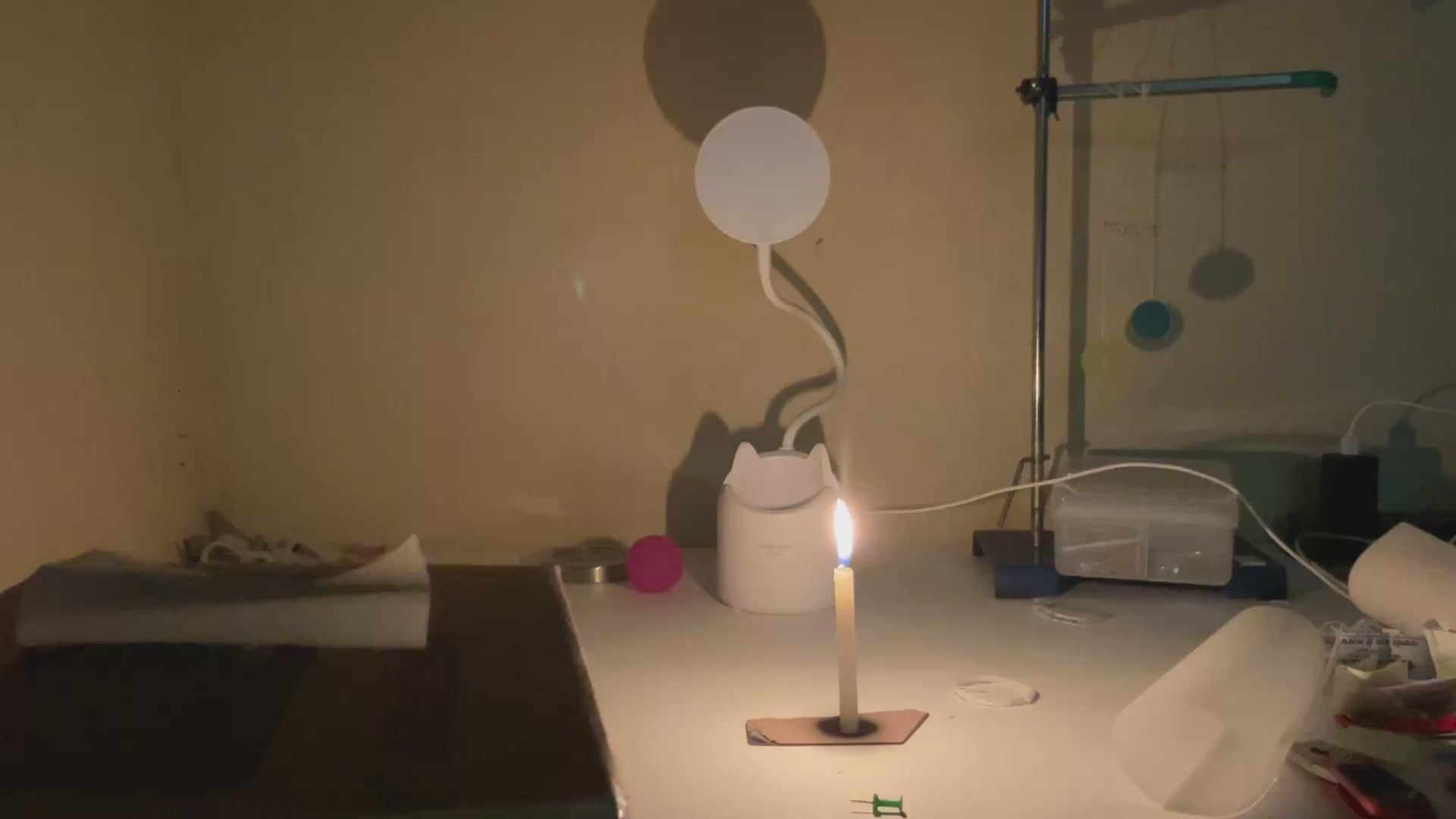

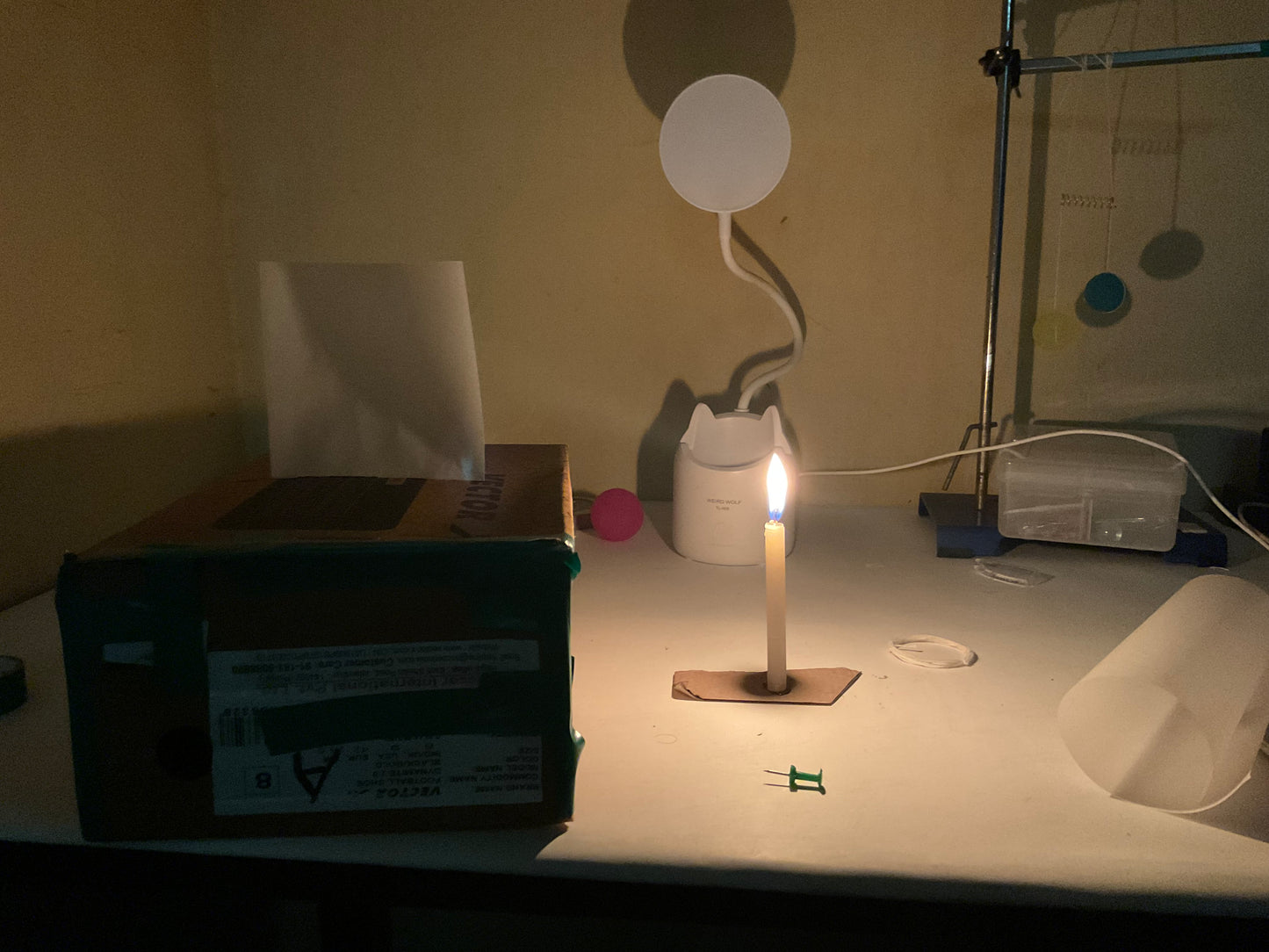

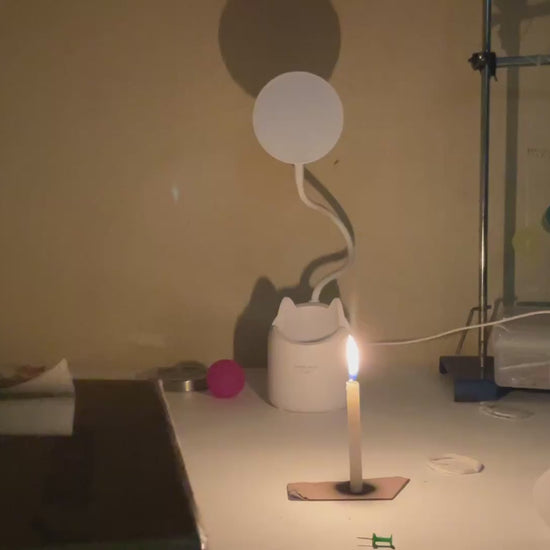

A Candle

The candle produced a clear image.

Although much smaller than a table lamp, its flame was bright enough to be seen easily.

A Mobile Phone

A video was played on a phone at maximum brightness.

The image was barely visible.

This led to an interesting conclusion.

Although phone screens appear bright when viewed directly, they emit far less light than a candle flame or a table lamp.

The pinhole camera makes these differences immediately apparent.

The Outdoors

Finally, the camera was pointed outside.

The image was clear, brighter and detailed.

Why?

Because the outdoor scene is illuminated by sunlight, one of the brightest natural light sources available.

Even though each individual object is not emitting light, the enormous brightness of reflected sunlight makes the image easy to observe.

The Image Is Upside Down

One of the most striking observations is that the image appears inverted.

Objects above appear below.

Objects on the left appear on the right.

This happens because light travels in straight lines.

Each point of the object sends rays in many directions.

Only a tiny bundle from each point passes through the pinhole.

The rays cross at the pinhole before reaching the screen.

The result is an inverted image.

The Trade-Off

The pinhole teaches an important lesson in optics.

A very small hole produces:

• Sharper images
• Less light

A larger hole produces:

• Brighter images
• More blur

Every camera must balance these two competing effects.

Modern cameras solve this problem with lenses, but the pinhole camera reveals the underlying geometry.

Nature's Own Pinhole Cameras

Pinhole cameras are not limited to laboratories.

Nature creates them as well.

On a sunny day, small gaps between leaves act as tiny pinholes.

Instead of producing irregular patches of light, they project small circular images of the Sun onto the ground.

The shape of the opening is largely irrelevant, provided it is small enough.

Each bright spot is an image of the Sun.

During a solar eclipse, these tiny images become crescents, allowing the eclipse to be observed safely without looking directly at the Sun.

A Tool for Solar Eclipses

A pinhole camera is one of the safest ways to observe a solar eclipse.

Instead of viewing the Sun directly, it projects its image onto a screen.

As the Moon gradually covers the Sun, the projected image changes shape.

The camera allows the eclipse to be studied without exposing the eyes to harmful sunlight.

A Deeper Realization

The pinhole camera contains no lens.

No mirrors.

No electronics.

No focusing mechanism.

Yet it forms a real image of the world.

This reveals a profound truth:

A lens does not create an image. It simply gathers and redirects more light. The fundamental possibility of image formation already exists because light travels in straight lines.

Every modern camera—from smartphones to space telescopes—is built upon this same geometric principle.

Continue the Investigation

The experiment you've just explored is only the beginning. Our hands-on investigation sets are designed to help you recreate, extend, and deepen these ideas through observation and experimentation.

Every investigation has the potential to lead to a new question. If you discover something interesting, improve the experiment, or develop a new variation, share it with the Geometers community. Your work may inspire others and could even be featured here.

Keep experimenting. Keep questioning. Keep discovering.

---

---
