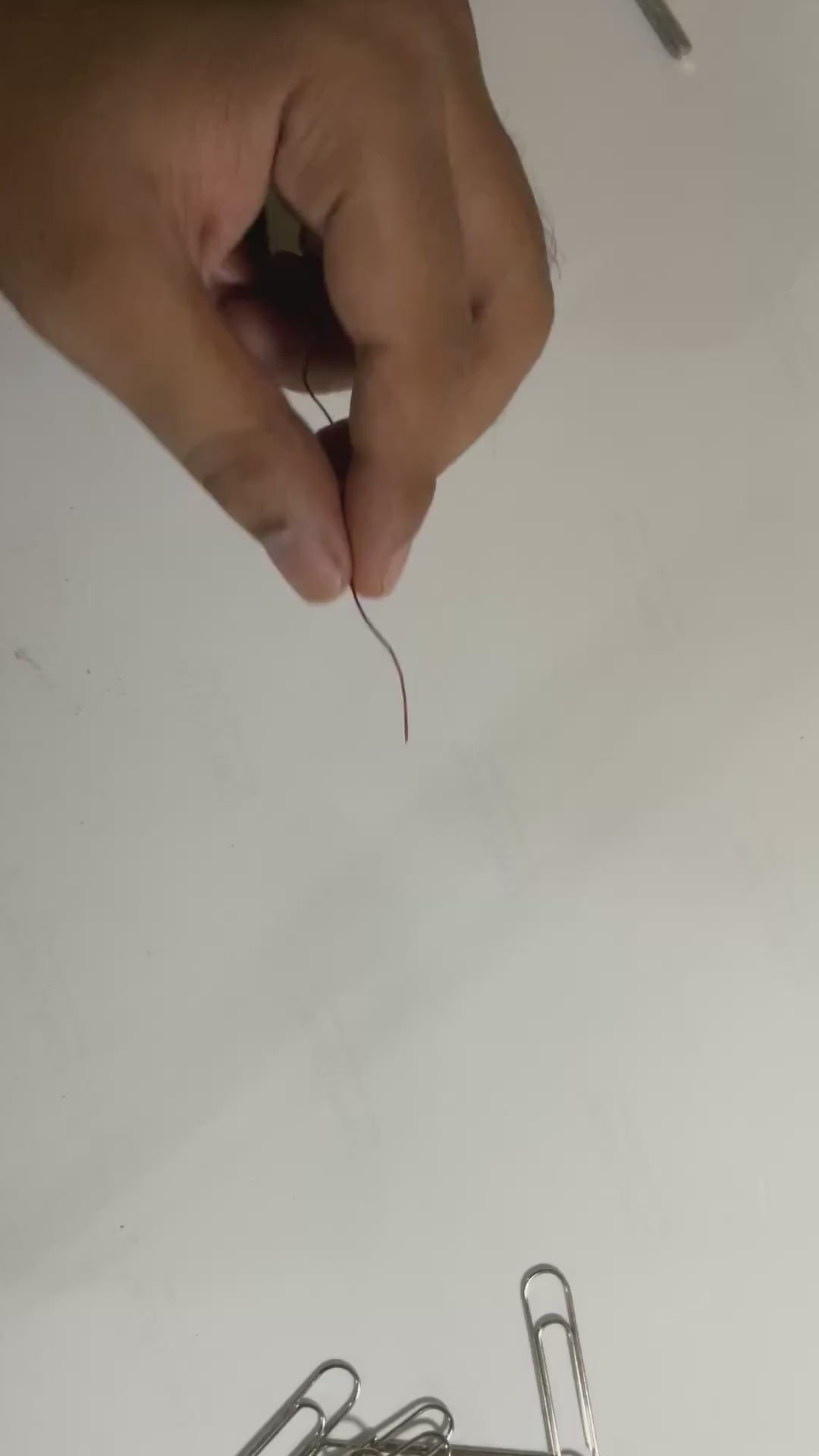

A copper wire alone produces only a weak magnetic field.

An iron nail alone is not a strong magnet.

But bring them together and something remarkable happens.

With a battery, a coil of wire, and an iron nail, we can create a magnet powerful enough to lift metal objects.

This is the principle behind electromagnets—the technology that powers cranes, relays, electric motors, speakers, and countless modern devices.

The Question

In one of the experiment we discovered that electric current creates a magnetic field.

But that field is relatively weak.

Can we strengthen it?

Can electricity be used to create a magnet stronger than the magnetic field produced by a wire alone?

Choosing the Right Material

Not all materials respond equally to magnetic fields.

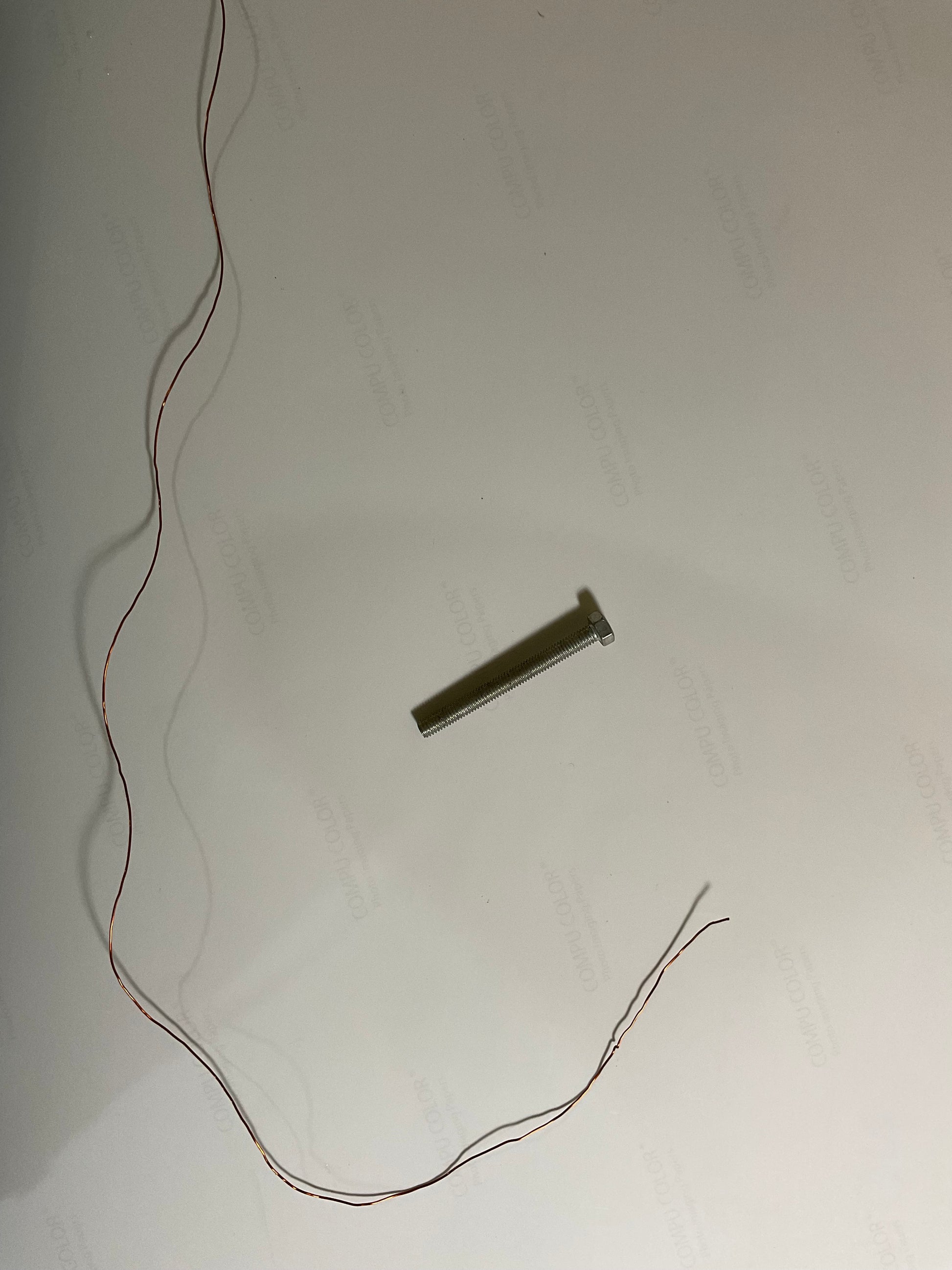

To investigate, several objects were tested:

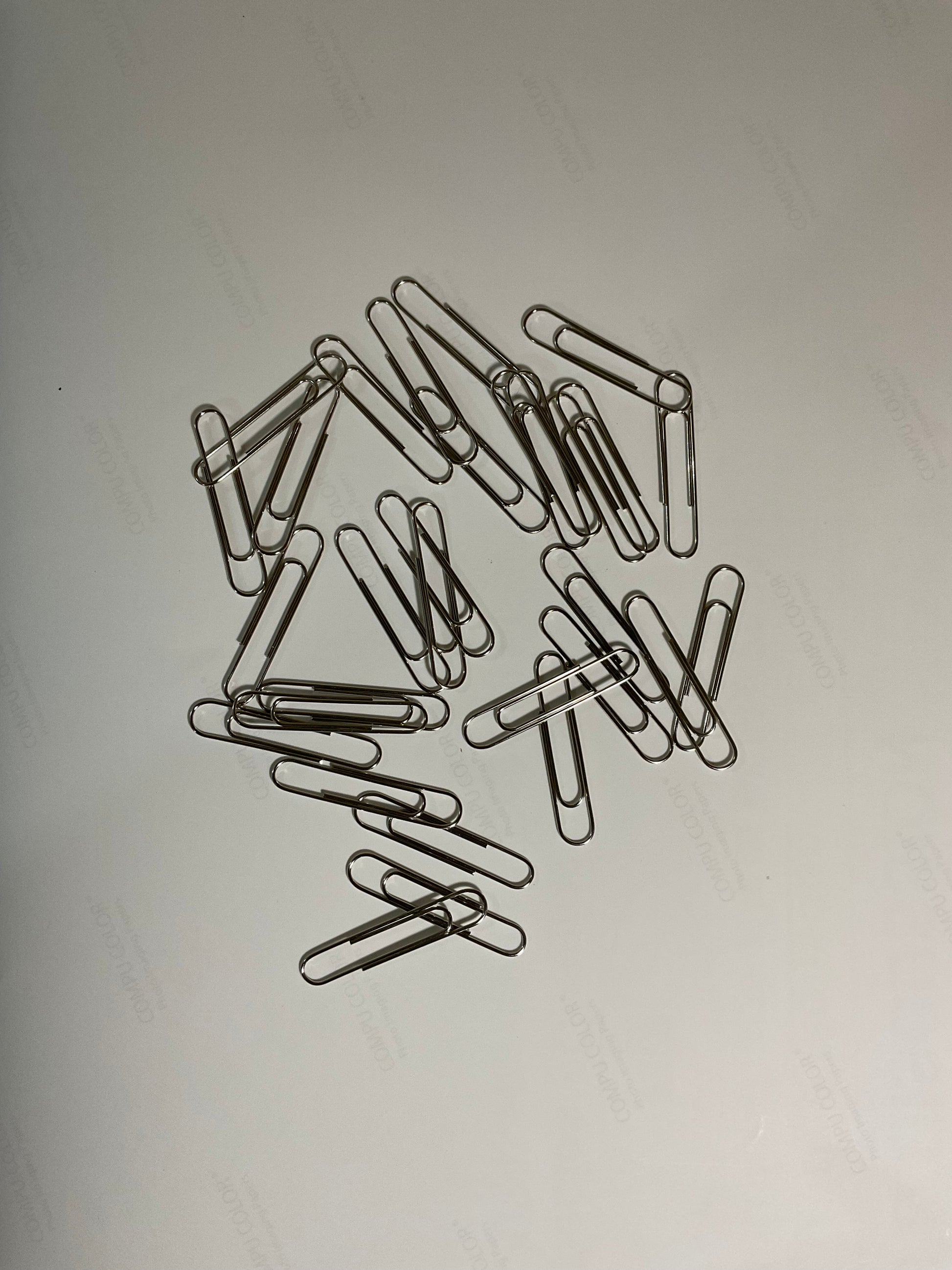

• Paper clips
• Steel wire
• Iron nail

Each object was brought near a compass.

The idea was simple:

If a material becomes magnetized easily, it should disturb the compass needle more strongly.

Among the tested materials, the iron nail produced the largest deflection.

This suggested that it was the best candidate for building an electromagnet.

Why an Iron Nail?

Iron contains countless microscopic magnetic domains.

Normally these domains point in many directions.

Their effects largely cancel.

When exposed to a magnetic field, many domains align in the same direction.

The iron becomes magnetized.

This property makes iron an excellent magnetic core.

The Power of a Coil

A straight wire carrying current creates a magnetic field.

However, there is a more efficient arrangement.

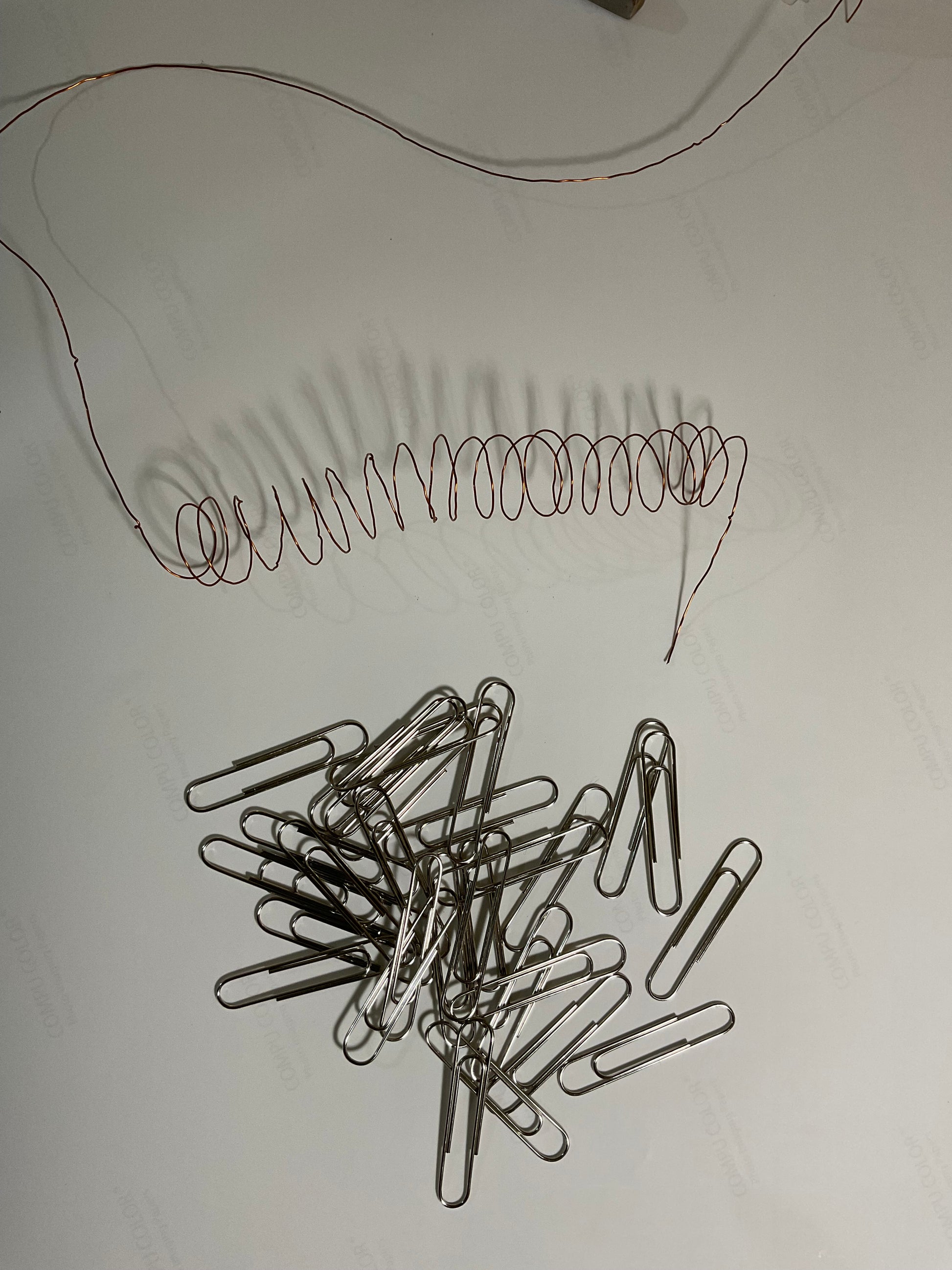

The wire can be wound into a coil.

This arrangement is called a solenoid.

Inside a solenoid, the magnetic fields produced by each turn reinforce one another.

The result is a much stronger and more uniform magnetic field.

More turns and more current generally produce a stronger magnetic field.

Building the Electromagnet

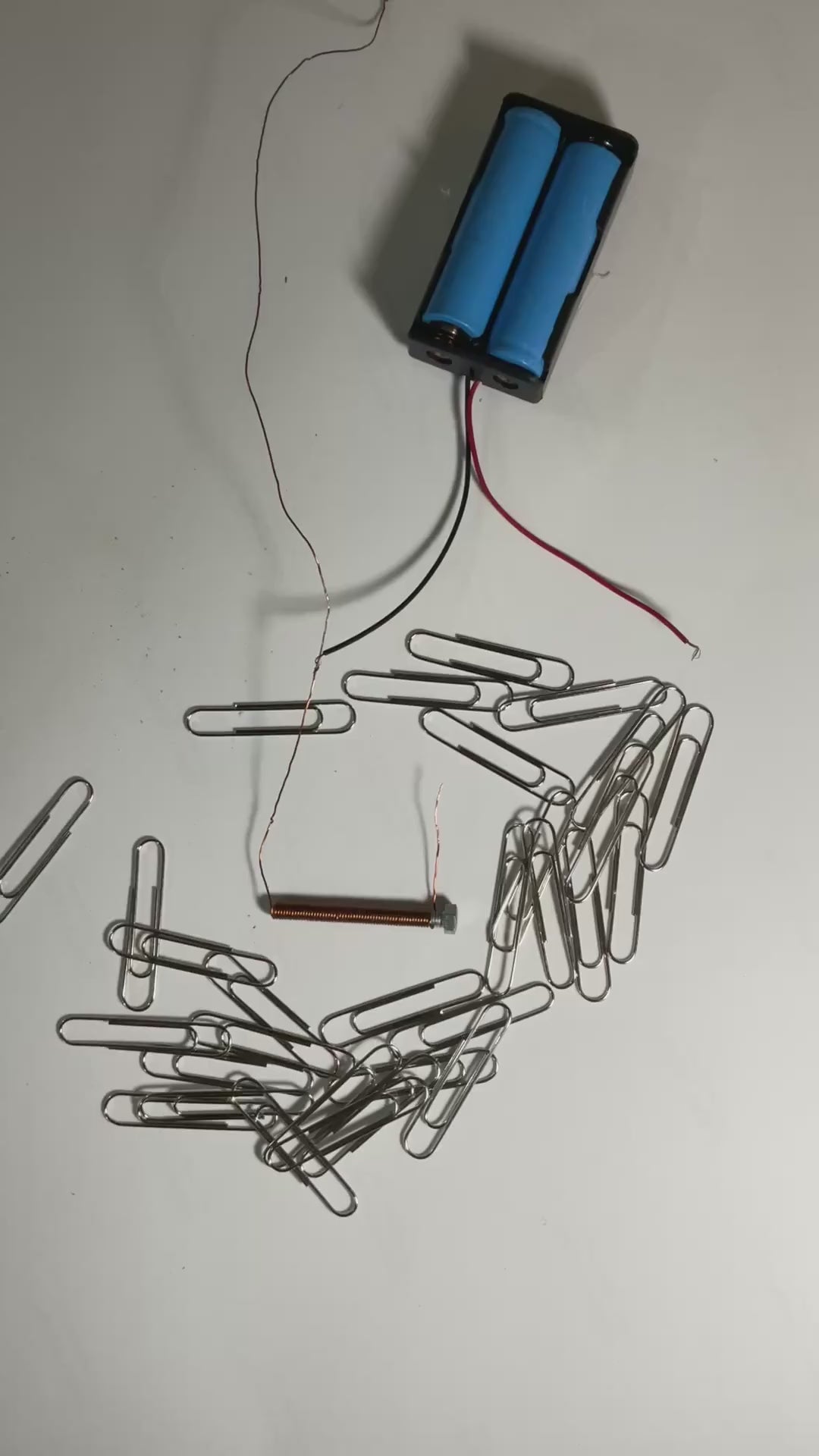

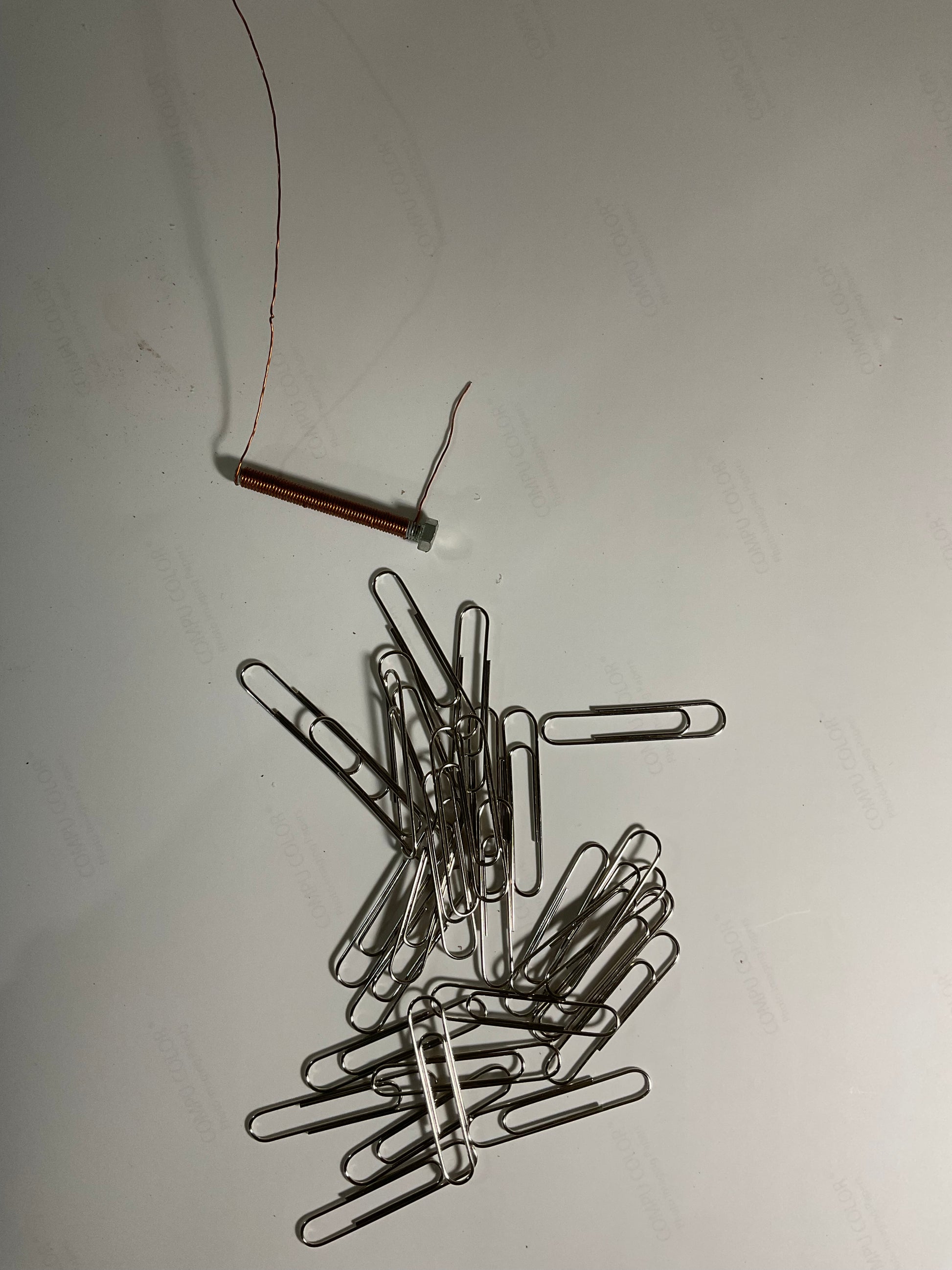

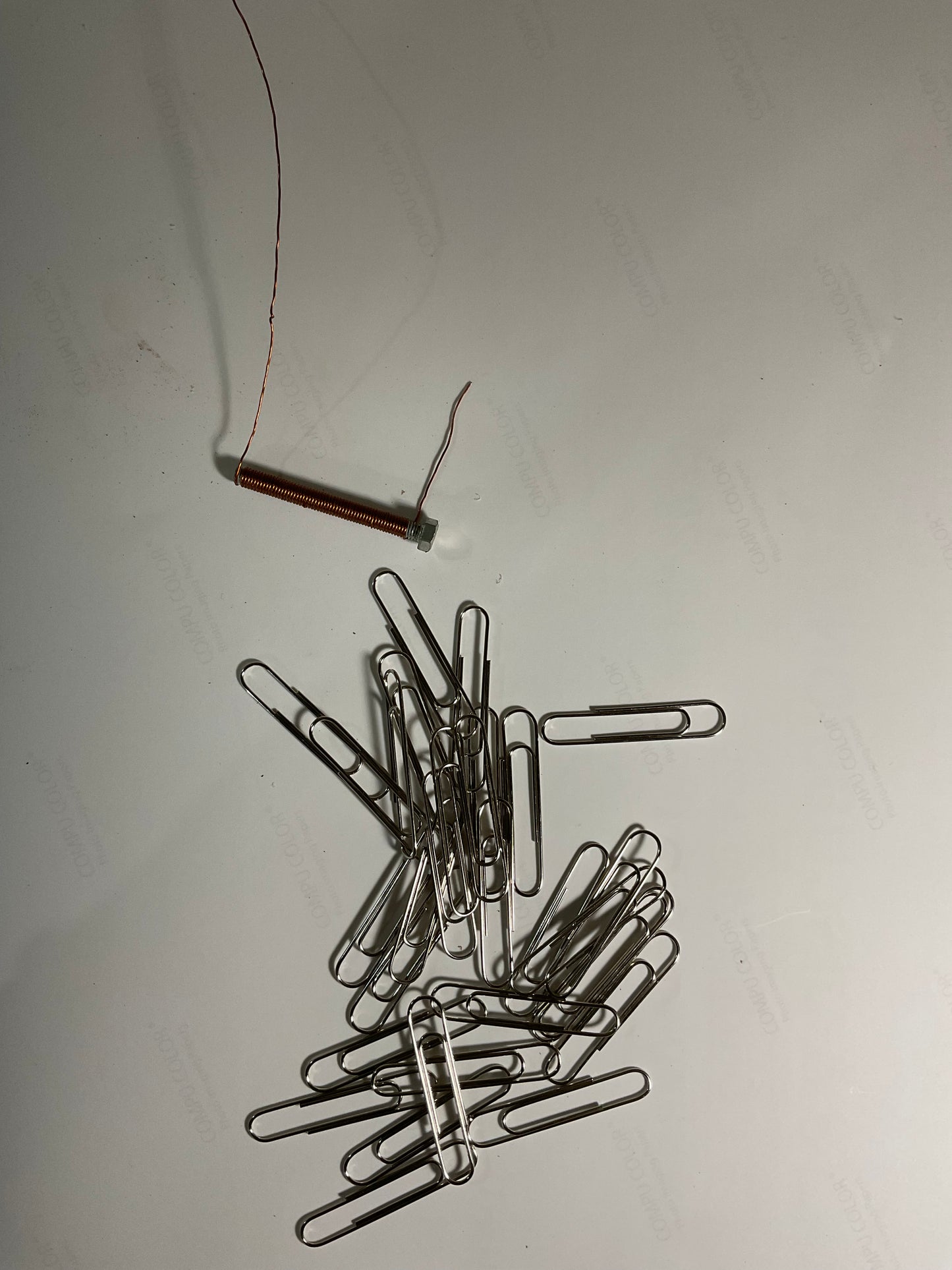

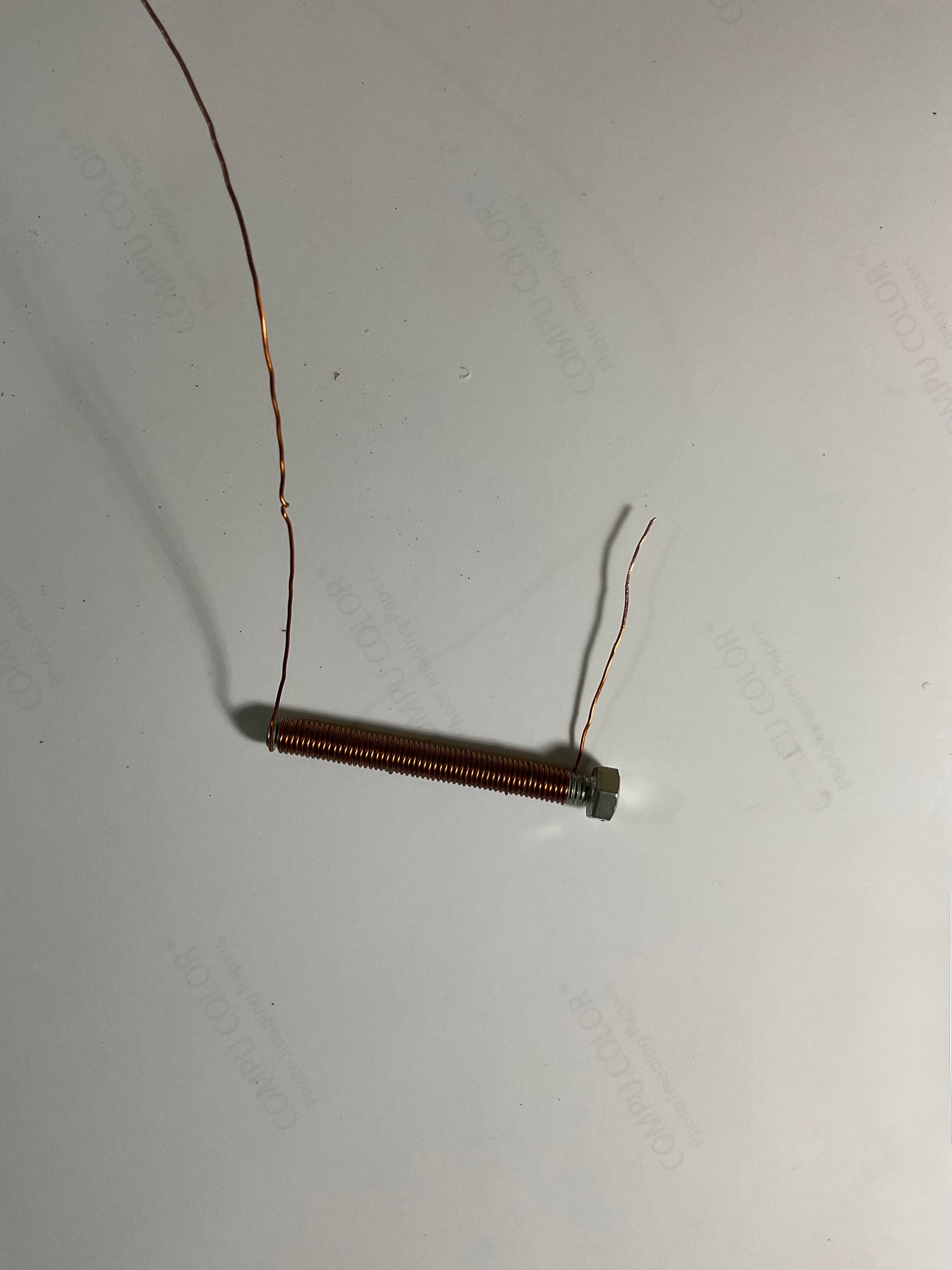

The enamelled copper wire was wrapped around the iron nail.

The nail was then placed near a pile of paper clips.

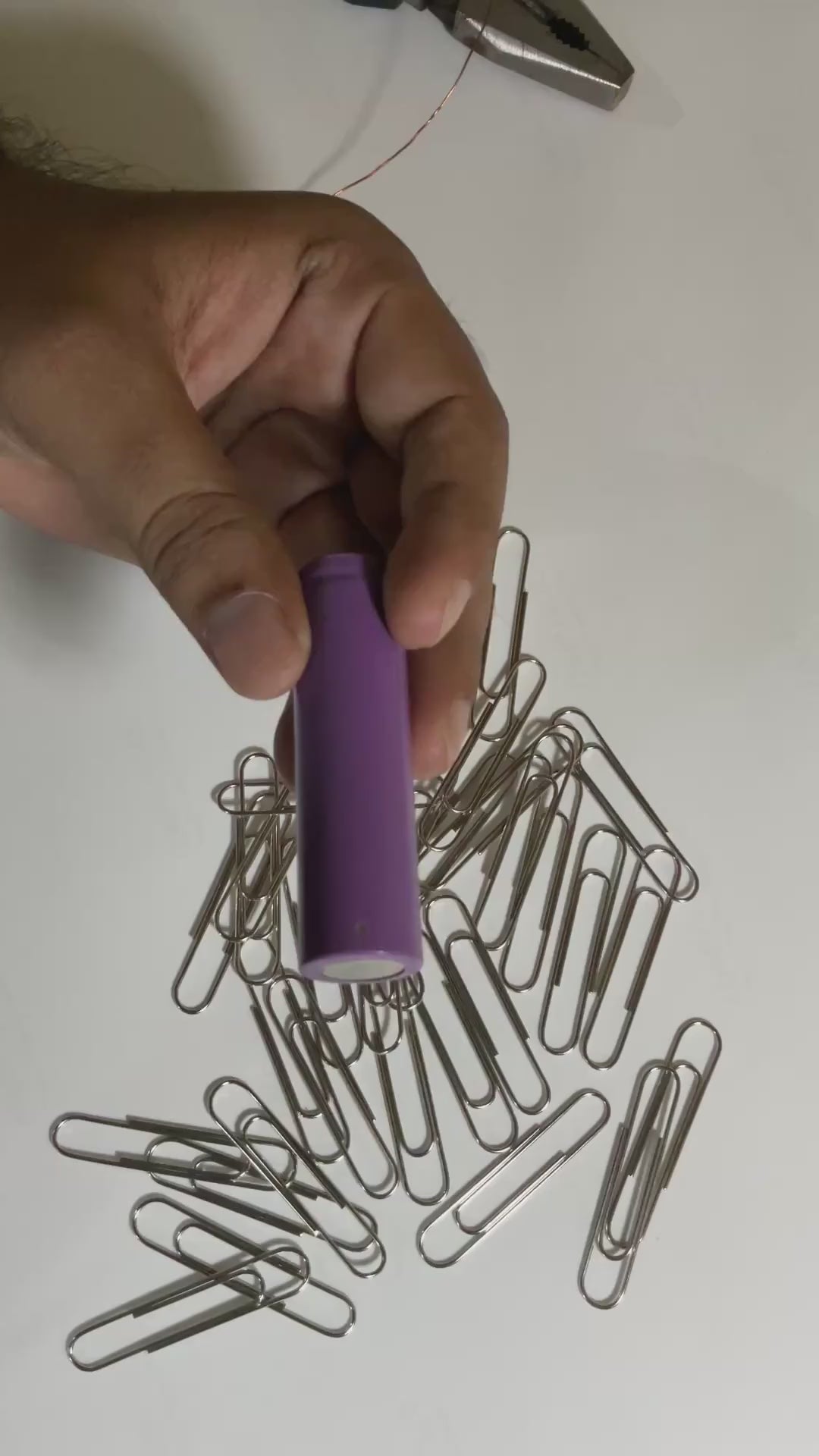

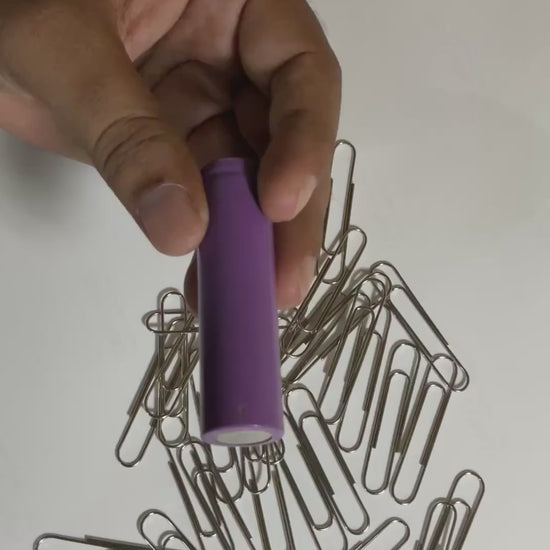

At first, nothing happened.

The nail behaved like an ordinary piece of iron.

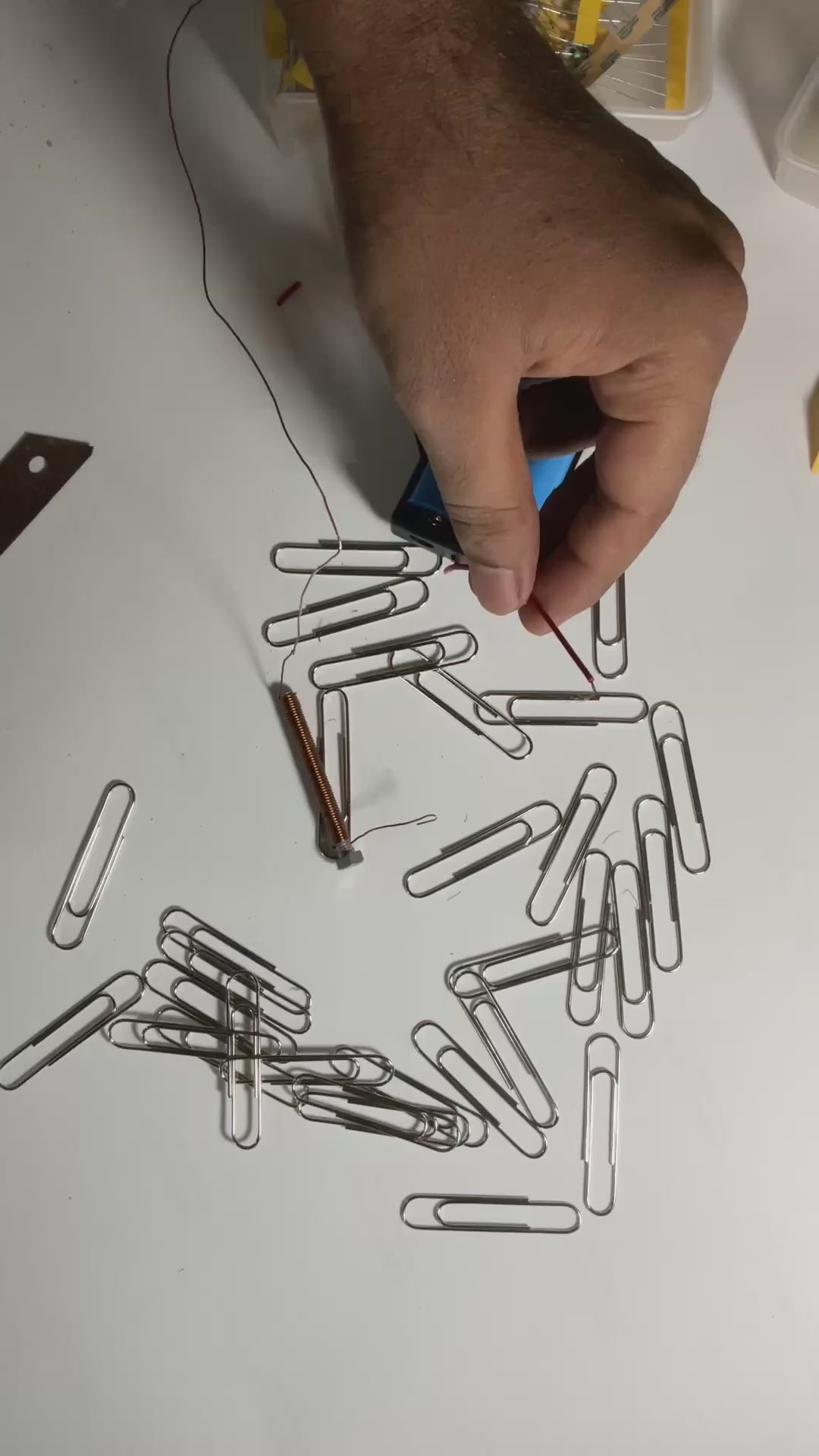

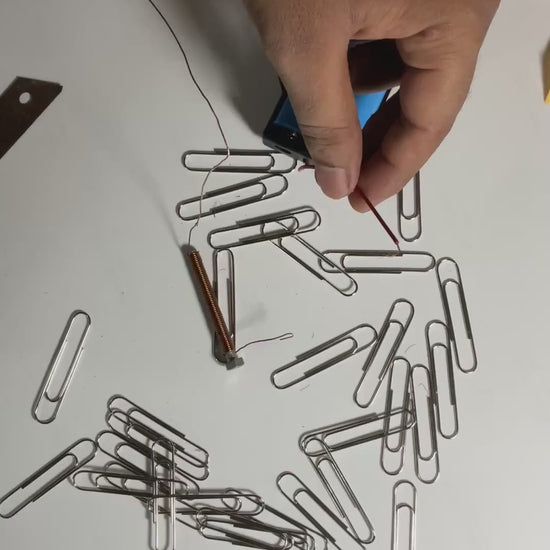

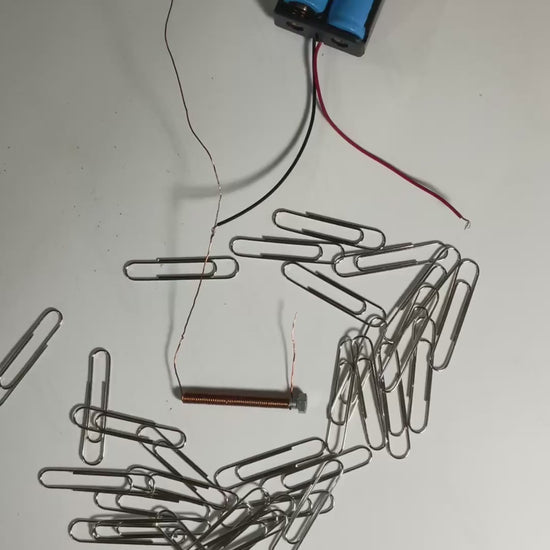

Then the battery was connected.

Current began flowing through the coil.

Immediately, the paper clips jumped toward the nail.

The nail had become a magnet.

What Happened?

The current flowing through the coil created a magnetic field.

That field magnetized the iron nail.

The iron core then produced its own magnetic field, aligned with the field of the coil.

Together they generated a much stronger magnetic field than the wire alone could produce.

You can think of the iron as amplifying the magnetic effect of the current.

A Deeper View

The iron nail does not create magnetism from nothing.

Instead, the magnetic field of the coil causes many magnetic domains inside the iron to align.

The aligned domains reinforce one another and strengthen the overall field.

This is why the electromagnet can attract objects much more effectively than the bare wire.

Why Electromagnets Are Special

Unlike permanent magnets, electromagnets can be controlled.

Turn the current on:

• The magnet appears.

Turn the current off:

• The magnet weakens or disappears.

This ability to switch magnetism on demand is one of the most useful ideas in engineering.

Real-World Connections

Electromagnets are everywhere.

A simple nail and coil demonstrate the same principle used in some of the world's most advanced technologies.

What This Experiment Teaches

• Magnetic induction
• Magnetic materials
• Solenoids
• Electromagnetism
• Magnetic domains
• Engineering design
• Amplification of magnetic fields

Most importantly, it shows that:

Electricity can be used not only to create magnetism, but also to control it.
