Can you build a compass from an ordinary sewing needle?

A magnetized needle can point toward Earth's magnetic field just like a commercial compass.

But during this experiment, an unexpected discovery emerged:

A floating compass appeared to be more accurate than a hanging compass.

Why?

The Challenge

The goal was simple:

Create a compass from scratch.

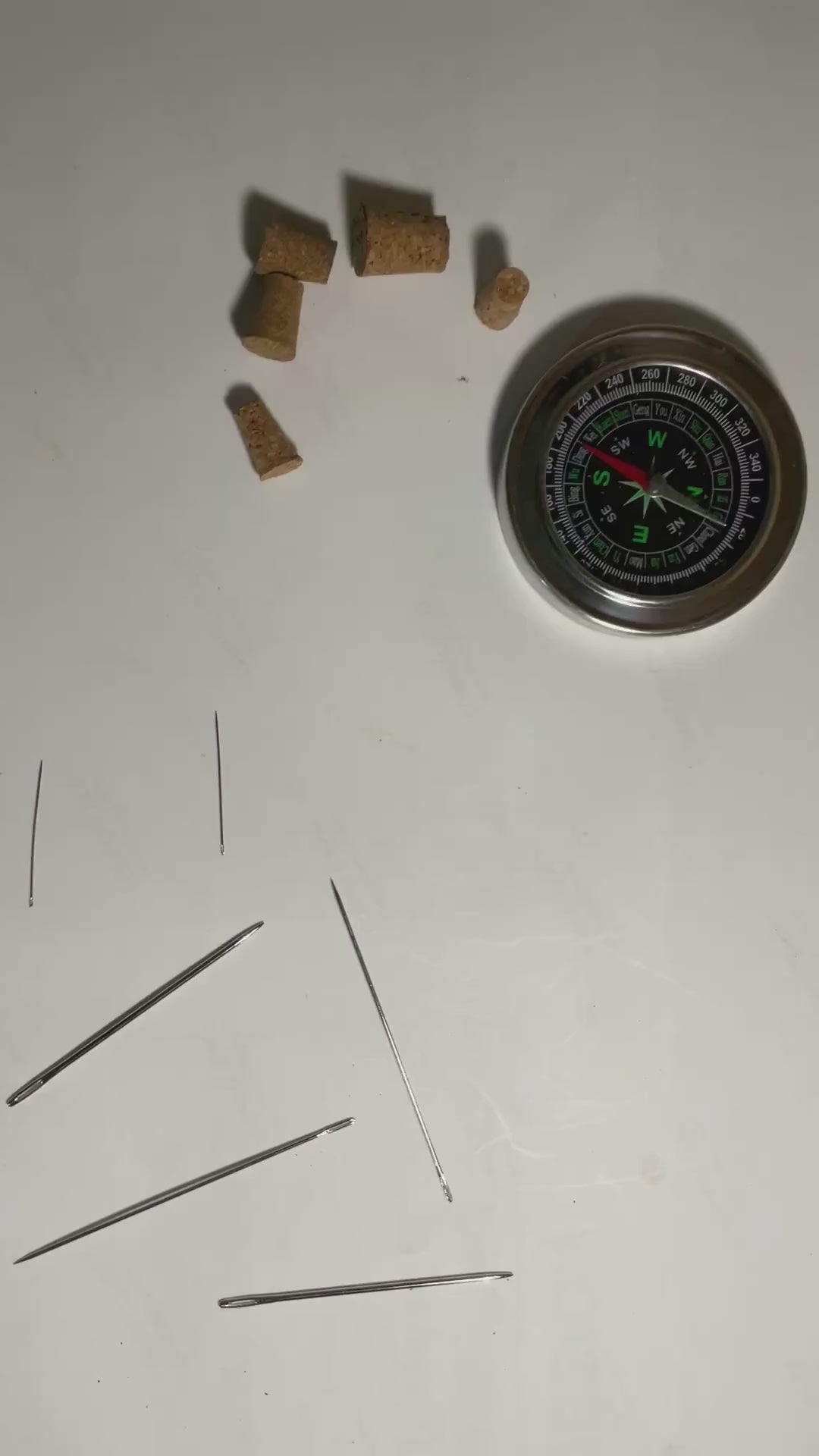

The first step was to find suitable needles.

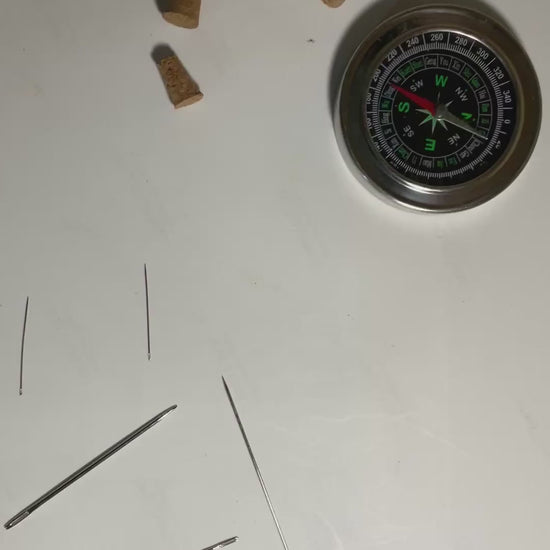

Several needles of different sizes and materials were tested near a compass.

The strongest candidates produced the largest compass deflections.

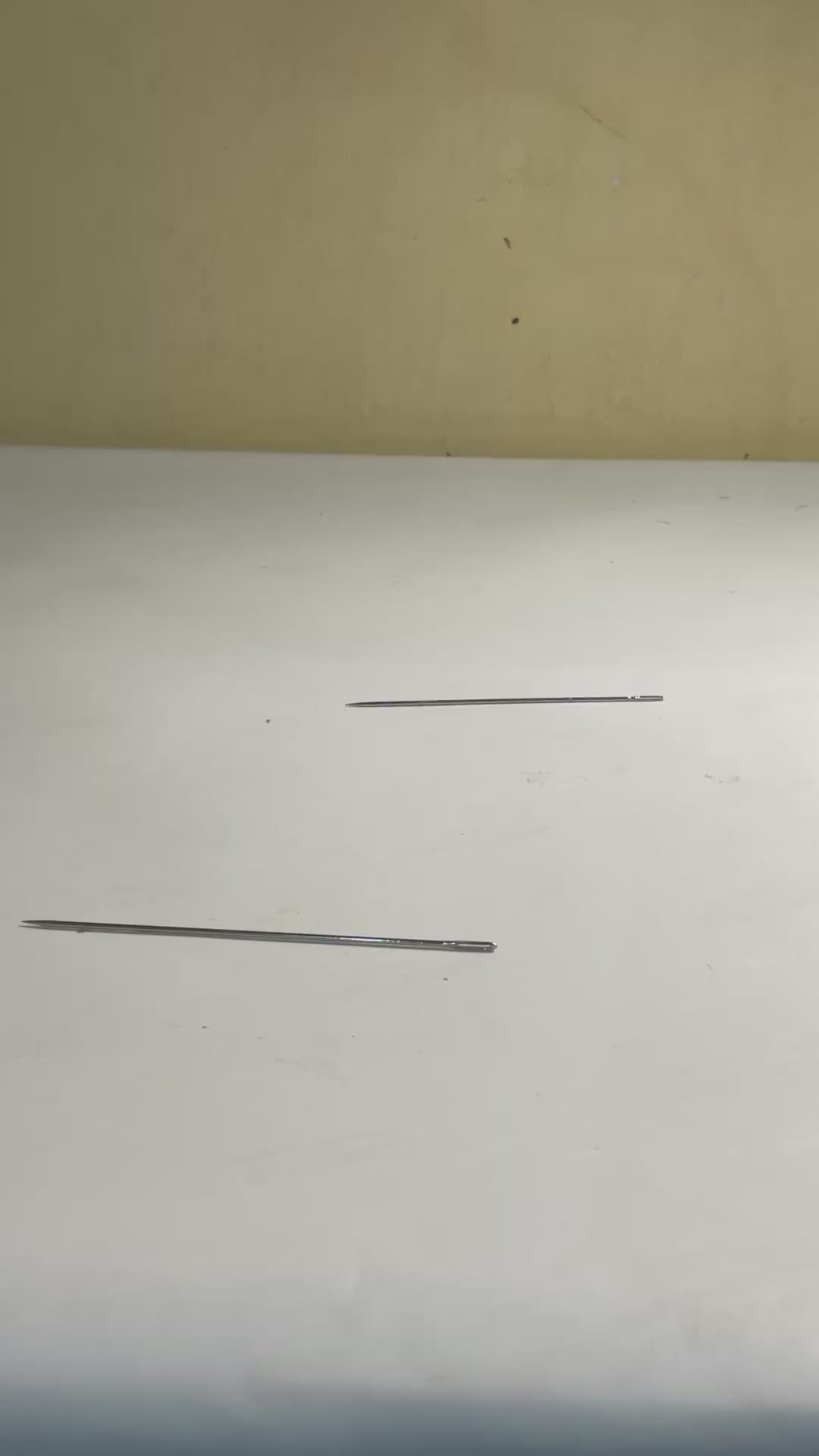

Two identical needles were selected for further experiments.

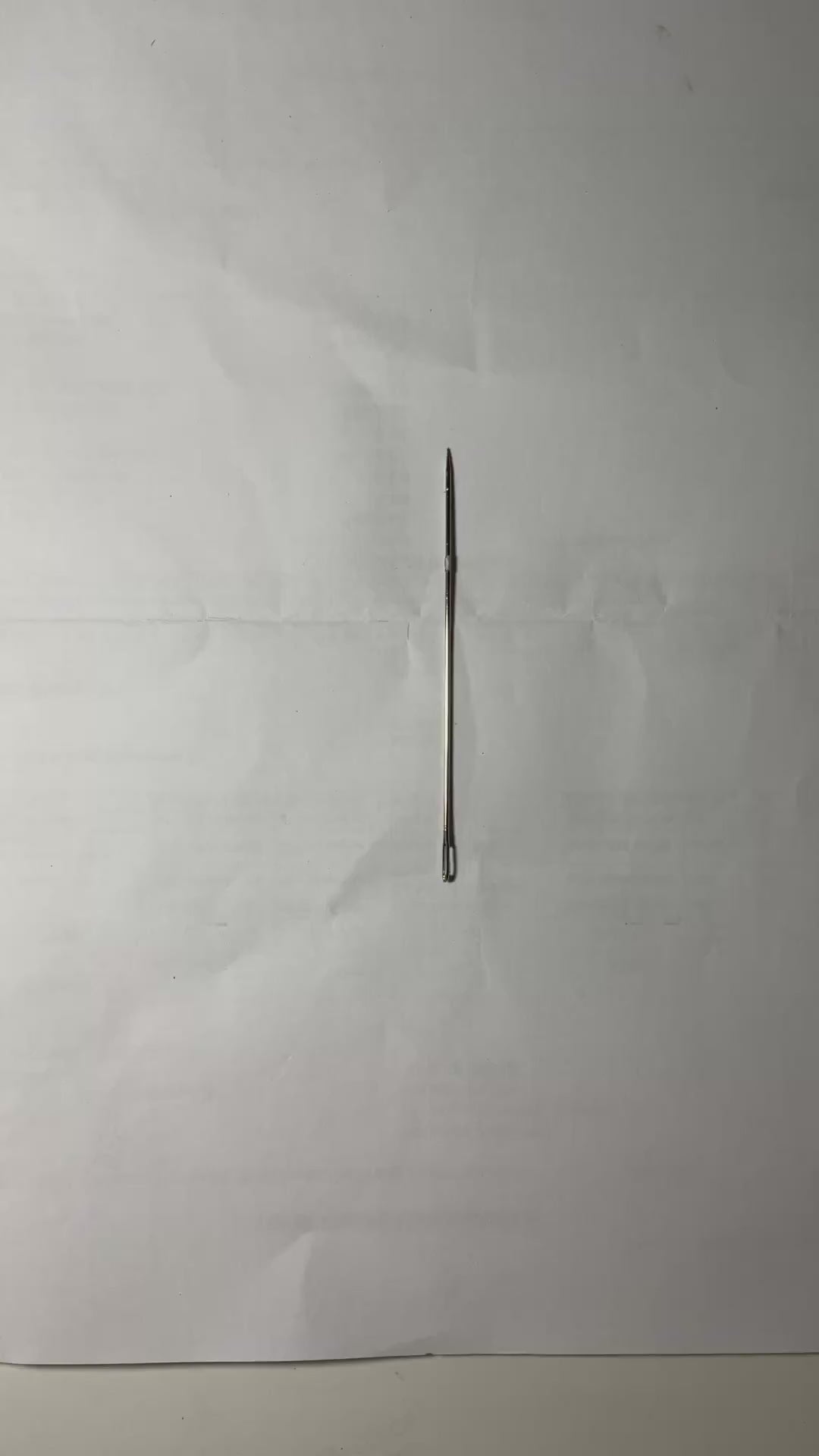

Creating the Compass Needles

The needles were magnetized using permanent magnets.

Repeated stroking gradually aligned magnetic domains inside the steel.

The resulting magnetization was strong enough that:

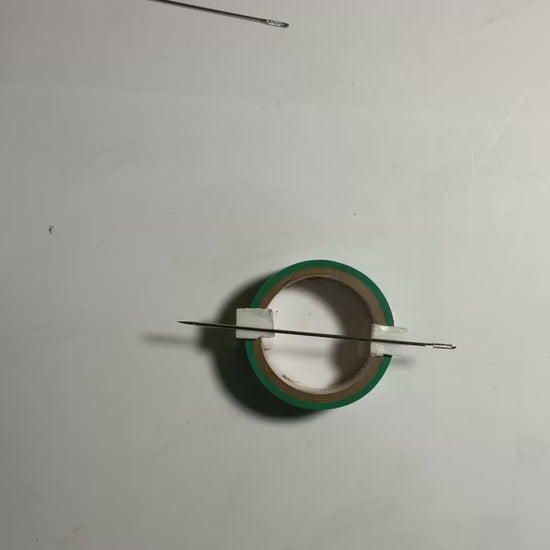

• One needle could attract another.
• One needle could even lift the other.

This was an important observation.

The needles were no longer merely pieces of steel.

They had become permanent magnets.

Making the Invisible Visible

To verify the magnetic field, iron filings were sprinkled around one of the magnetized needles.

The familiar magnetic field pattern appeared.

The field lines were not as clear as those around a strong bar magnet, but they were unmistakable.

The needle had become a genuine magnetic dipole.

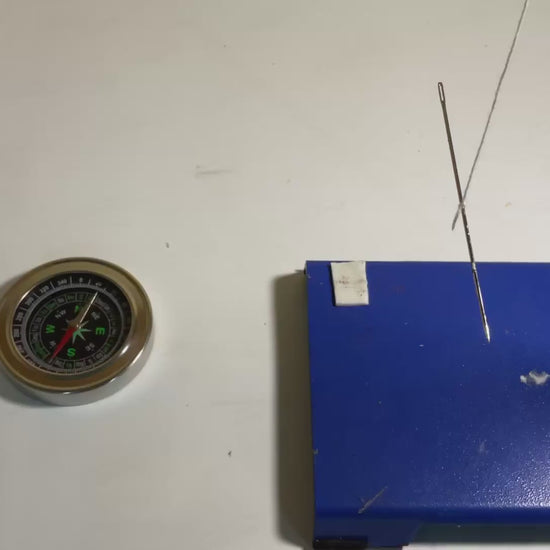

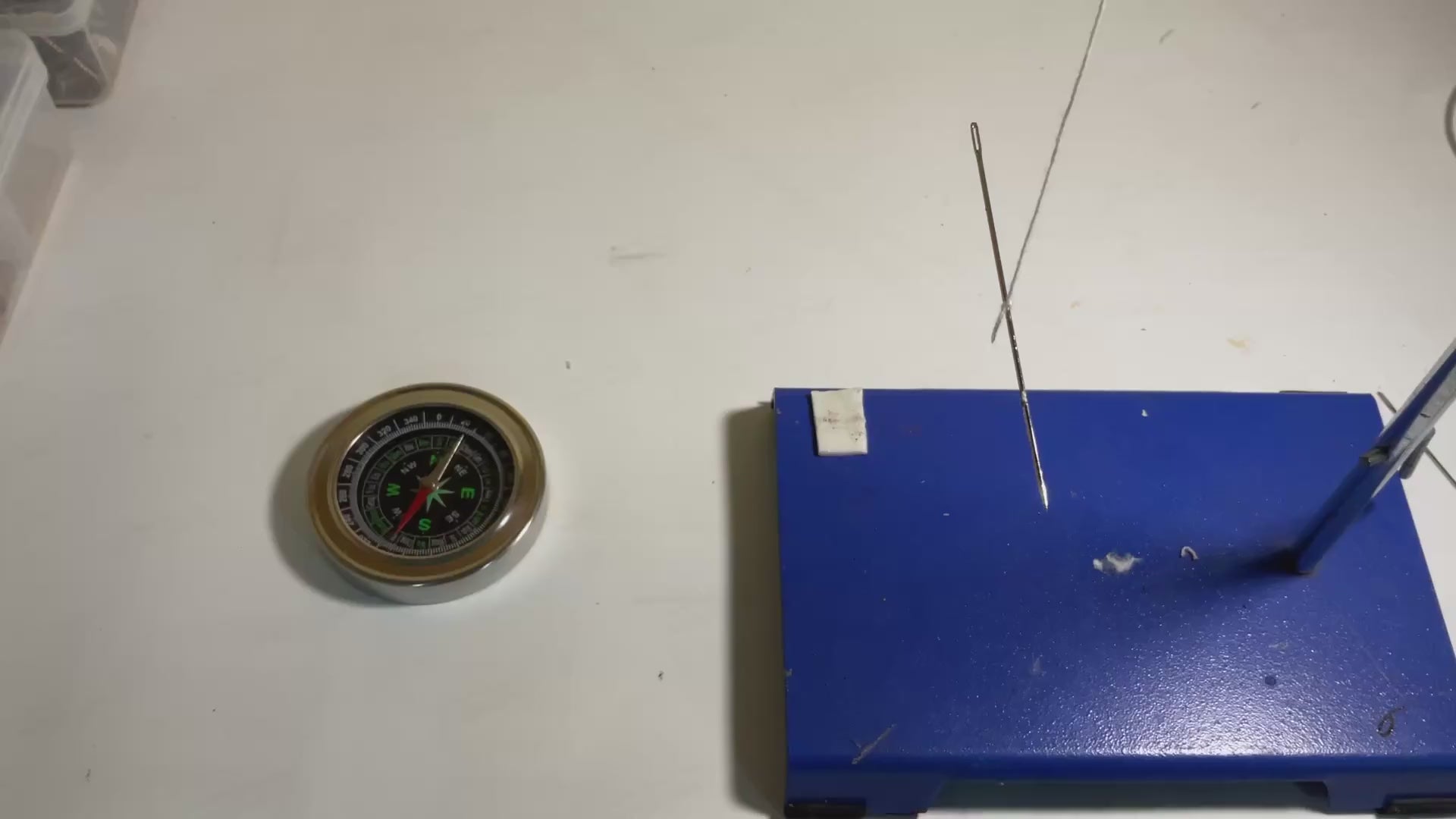

Version 1 — The Hanging Compass

The first compass was created by suspending a magnetized needle from a thread.

Freely hanging, the needle slowly rotated until it aligned with Earth's magnetic field.

The device behaved exactly like a traditional compass.

It could indicate direction.

It could also be used to investigate magnetic interactions.

A Surprising Observation

The hanging needle revealed something important.

When testing attraction and repulsion between magnets, very weak forces became easier to detect.

Repulsive forces that were difficult to observe on a table became obvious when the needle was suspended.

The reason is simple:

A hanging object experiences very little friction.

Even tiny forces can produce noticeable motion.

This suggests a broader lesson:

Sensitive measurements often require reducing unwanted constraints and friction.

Many scientific instruments are designed around this idea.

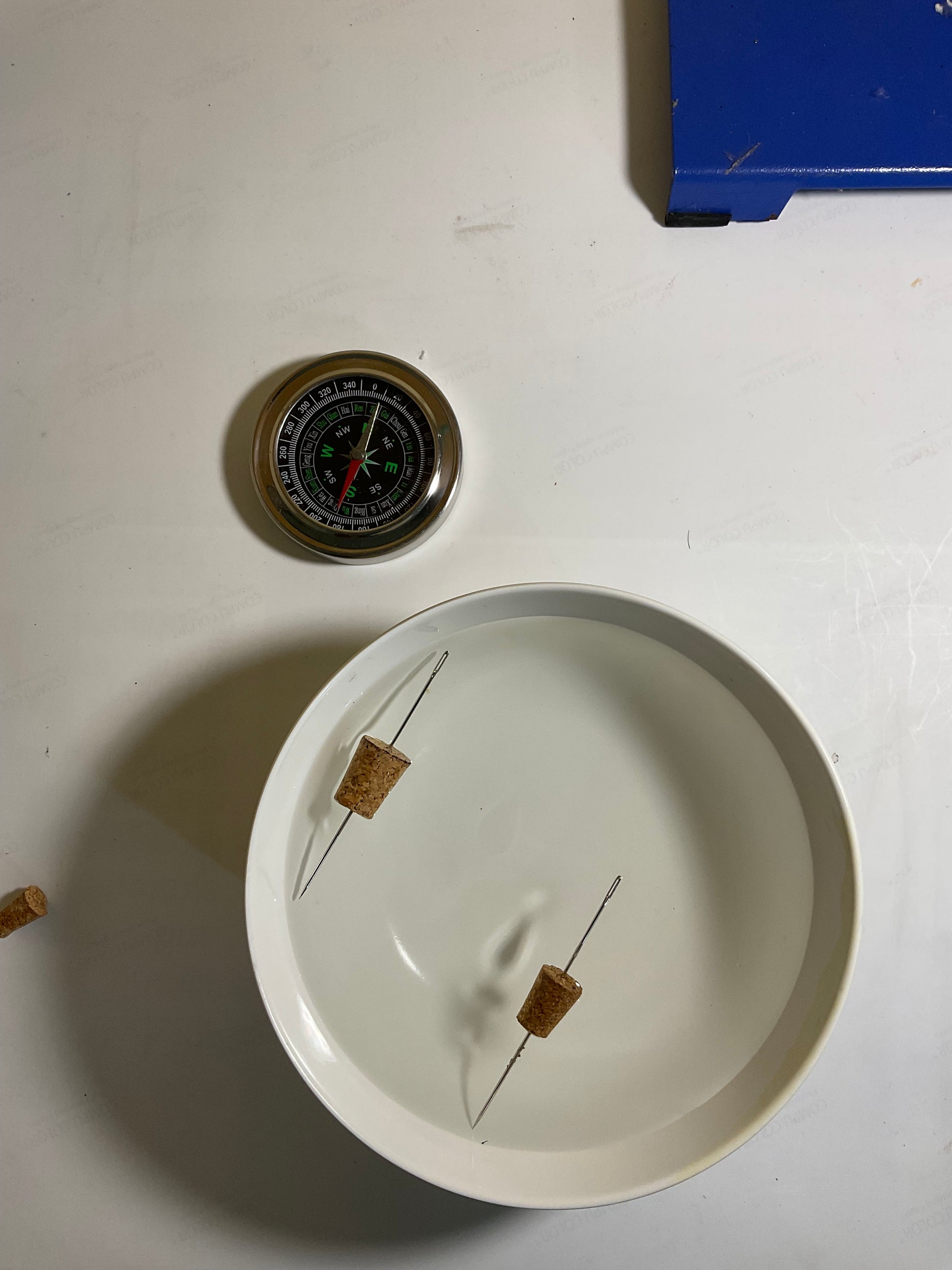

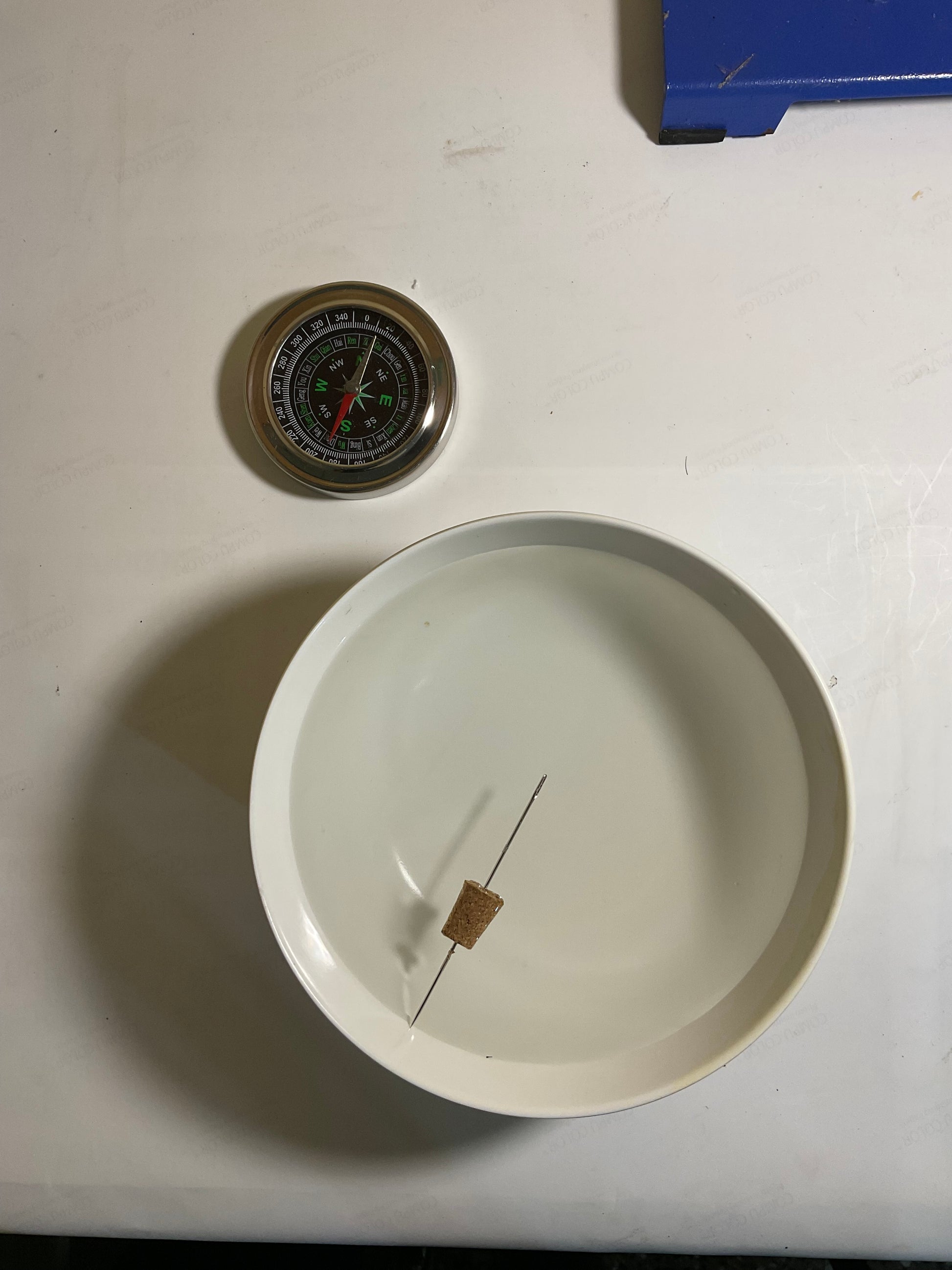

Version 2 — The Floating Compass

The second compass used the same magnetized needle.

This time the needle was passed through a small cork and allowed to float on water.

Now the entire system could rotate freely on the water surface.

Like the hanging compass, it aligned itself with Earth's magnetic field.

But something unexpected appeared.

The floating compass consistently pointed in a slightly different direction from the hanging compass.

An Unexpected Result

The floating compass appeared to align more accurately with magnetic north.

The hanging compass showed a small directional error.

The difference was only a few degrees, but it was repeatable.

This raises an intriguing question:

Why should two compasses made from similar needles point in slightly different directions?

Possible Explanations

Several possibilities are worth investigating.

Suspension Effects

The thread may introduce a small twisting force.

Even a weak torsion in the thread can slightly alter the equilibrium direction.

---

Imperfect Balancing

The hanging needle may not be perfectly balanced.

Gravity acting on an uneven mass distribution could influence the final orientation.

---

Magnetic Dip Effects

Earth's magnetic field is not horizontal.

It is inclined downward at an angle known as magnetic dip.

The hanging compass may respond differently to this three-dimensional field than the floating compass.

---

Mechanical Constraints

The floating compass is largely restricted to horizontal rotation.

The hanging compass may experience additional rotational effects.

---

Experimental Uncertainty

Small air currents, vibrations, or nearby magnetic objects could also contribute.

The Scientific Value

Most experiments end when the expected result appears.

This one becomes more interesting because two different methods give slightly different answers.

The goal shifts from:

"Can I make a compass?"

to

"Why do two compasses disagree?"

That is exactly how scientific investigations often begin.

A Deeper Lesson

The experiment demonstrates an important principle of science:

A good instrument is not just one that works—it is one that minimizes unwanted influences.

The floating compass and hanging compass both detect Earth's magnetic field.

But they do not do so equally well.

Understanding why may reveal as much about the instrument as about the phenomenon being measured.
